Description

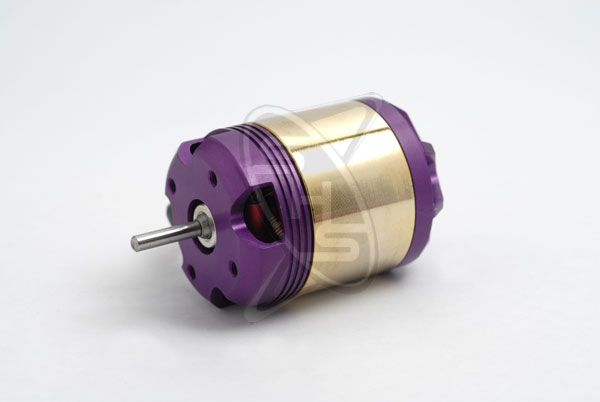

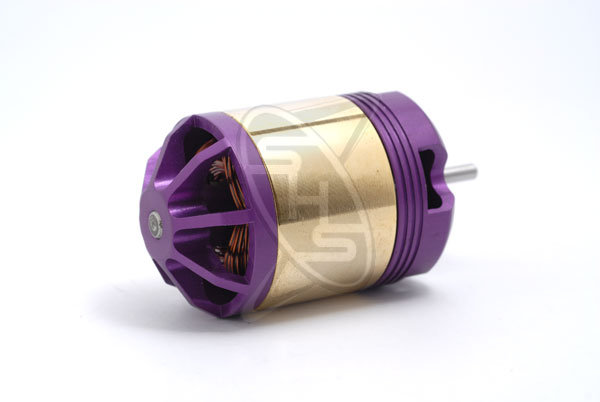

The Cyclon Heli 2000 Brushless Motor is designed to power electric RC helicopters. Using a 5-cell Lipo battery at a power consumption of 35 amps, this motor can fly with ease models with a rotor diameter of 100 cm to 125 cm. The motor range employs the NFS Principle (Noro Fabrice System) in the manufacturing process and allows the motor attain considerable power for very low weight. This Cyclon Motor possesses a record power to weight ratio, as it can develop 600 W continuous and more than 900W in peak power at the weight of only 160 g.
Specifications:
Power with 16 Cells NiCd: 600 W continuous , 900 W peak (30 seconds)
Efficiency: 89 % At 16V – 31A, Timing 4 °
Current: 35 A Continuous , 60 A peak ( 30 seconds)
Winding Resistance: 0.014 Ohm/Phase , 0,028 Ohm total
KV = 2093 tours/Min/Volt
Io = 1.7 A (6v)
Dimensions: Diameter 36 mm , Length 53 mm (without shaft )
Weight: 160 gms
