Description

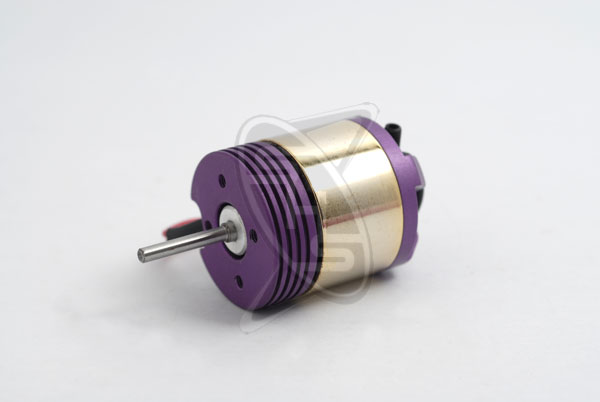

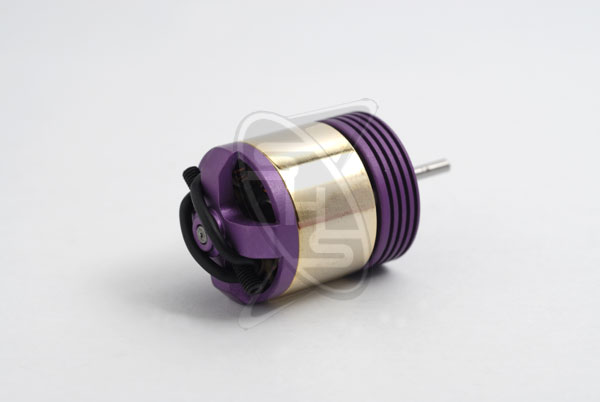

The Cyclon Mini 2 Brushless Motor is designed for powering airplanes, helicopters or powered glider. This motor can be used with 6 to 10 cells from 300 to 2000 mAh NiCd or 2S/3S Lipo batteries.
Characteristics of the motor using 4-15 degrees timing:
- Current continuous: 12A, current: 18A max (30 sec)
- Efficiancy: 81%, timing 4 degrees
- Resistance windings: 0.115 Ohm total
- KV = 1650 Revs/Min/Volt
- lo = 0.8A (6V)
- Dimensions: Diameter 25mm, Length 32mm
- Weight: about 42g
