Description
Glow power isn’t the only option anymore. The DLE 20 Engine not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.
A generous package of “extras” and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.
Features:
-
2.5HP/9000 rpm
-
Idle Speed: 1750 rpm/min
-
6.0Kg Static Thrust/ 100 meters altitude
-
5.3Kg Static Thrust/ 1800 meters altitude
-
Recommended propellers: 14×10; 15×8; 16×6; 16×8;17×6
-
Ignition battery: 4.8v >= 1200mAh
-
Replacement Spark Plug: CM6
-
Plug Gap: 0.46 to 0.51mm (0.018″ to 0.020): Installation Torque: 7 to 8 ft-lbs
Specifications:
Displacement: 30.5cm3
Diameter × Stroke: 32 × 25mm
Compression Ratio: 10.5:1
Fuel 2C Gasoline: 30:1 – 45:1 (30:1 for breakin, 40:1 quality synthetic thereafter)
Weight: Main Engine – 650g; Muffler – 50g; Ignition device – 120g
Diameter × Stroke: 32 × 25mm
Compression Ratio: 10.5:1
Fuel 2C Gasoline: 30:1 – 45:1 (30:1 for breakin, 40:1 quality synthetic thereafter)
Weight: Main Engine – 650g; Muffler – 50g; Ignition device – 120g

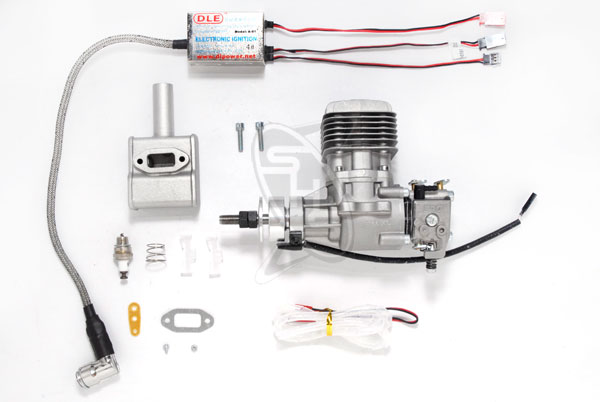

Package includes:
- DLE-20 engine
- Auto advancing electronic ignition system
- Muffler, gasket, bolts, CM6 spark plugand fuel line

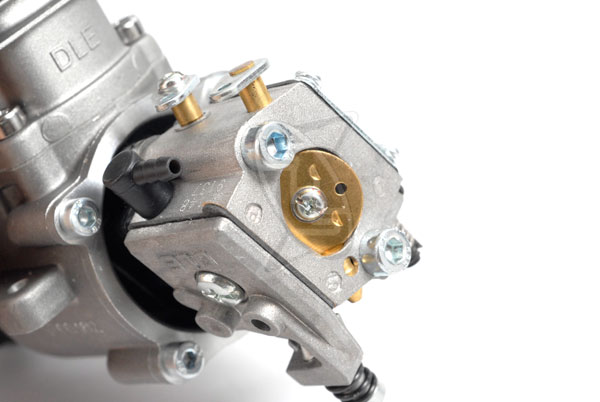

- DLE pump carb & composite throttle arm extension
- Instructions manual
