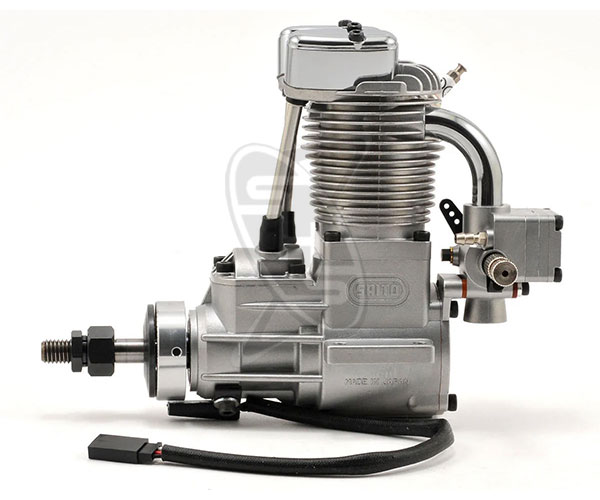

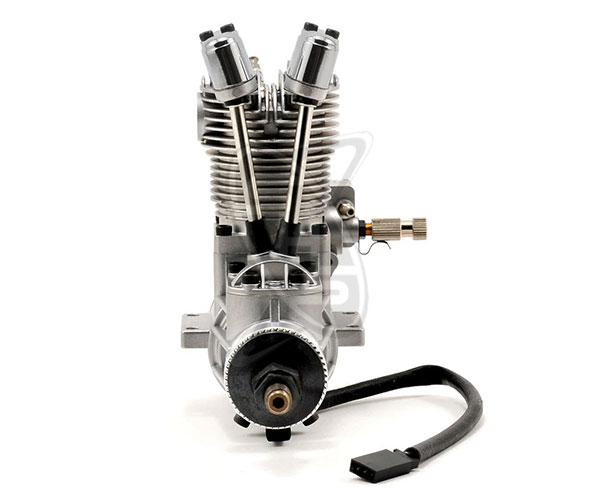

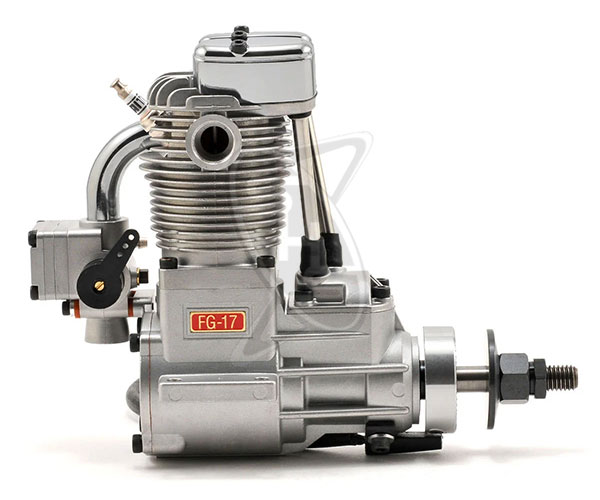

SAITO FG-17 4-Cycle Gasoline Engine

Description

This is the Saito Engines FG-17 (100) 4-Stroke Gas Engine. Saito is continuing to expand their gasoline engine line with the addition of the FG-17cc 4-stroke engine. The FG-17cc is a low operating cost version of Saito’s most popular engine, the FA-100, with the same performance. This new engine uses the latest pump carb technology from Saito, inset valve seats as well as a new style ignition system. The FG-17cc is ideal for any .60 size model or any model currently using the FA-100. Like all Saito engines, these powerhouses are engineered with the same quality and reliability that Saito fans have come to know and trust.

Features:

• Gasoline engine lowers operating costs as much as 90%

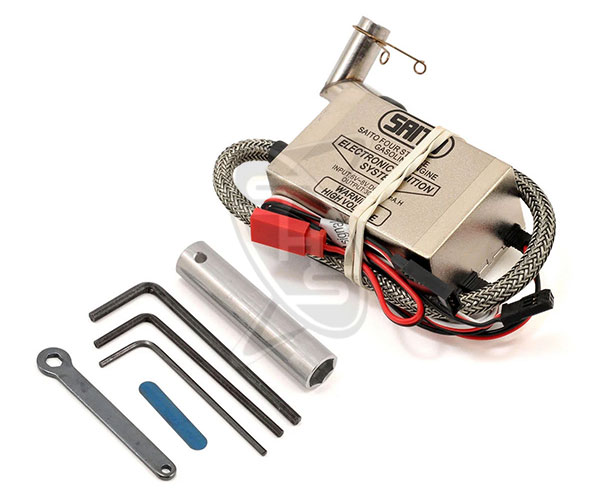

• Electronic ignition included for easy start-ups

Specifications:

• Fuel Type: Gas
• Cylinders: Single
• Displacement: 1.05 cu. in. (17.20 cc)
• Type: 4-stroke
• Bore: 1.14 in (29.0mm)
• Stroke: 1.02 in (26.0mm)
• Total Weight: 27.2 oz (770 g)
• Muffler Weight: 2.1 oz (60 g)
• Ignition Weight: 3.5 oz (100g)
• Crankshaft Threads: 8 x 1.25mm
• Muffler Threads: 12mm
• Benchmark Prop: 15 x 6 @ 9200 rpm
• Prop Range: 14 x 8 – 16 x 6
• RPM Range: 2,000 – 9,500
• Oil Type & Content: Gas-oil mix of 20:1
• Muffler Type: Cast
• Cylinder Type: AAC with Ring
• Carb Type: 2 Needle Saito Gas Carburetor
• Crank Type: Threaded
• Plug Type: Four Stroke 1/4-32 plug
