FUTABA BLS671SV HV S.Bus2 Programmable Mini 1/12

Description

FUTABA BLS671SV HV S.Bus2 Programmable Mini 1/12

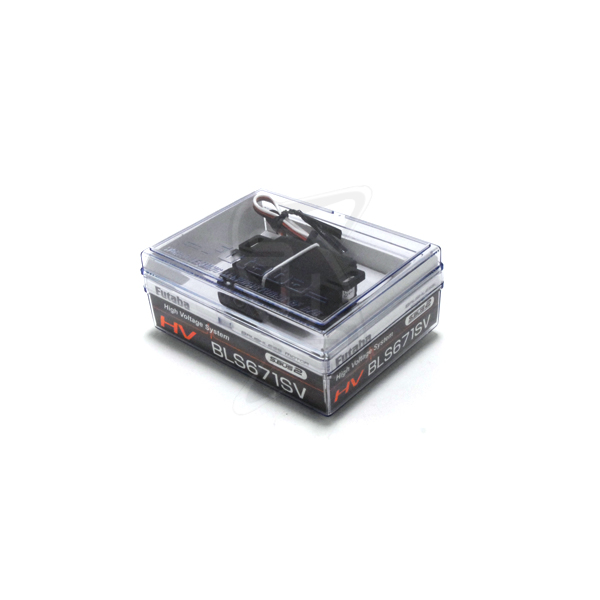

This is the Futaba High Voltage BLS671SV S.Bus2 HV SX Mini Servo.

FEATURES:

- Designed to be used with models requiring high speed and high torque
- Brushless motor offers incredible holding power and 5X longer life than servos equipped with brushed motors
- Programmable and compatible with S.Bus and S.Bus2

In the Box:

- HV BLS671SV HS S.Bus2 Mini Servo with Instructions
- 0.83" (21mm) Round Horn
- 1.5" (39mm) Four Point Horn
- 1.2" (32mm) Six Point Horn
- Four each, Grommets, Eyelets and Mounting Screws

Specifications:

Torque: 115.3 oz-in (8.3 kg-cm) @ 7.4V; 102.8 oz-in (7.4 kg-cm) @ 6.6V
Speed: 0.10 sec/60° @ 7.4V; 0.11 sec/60° @ 6.6V

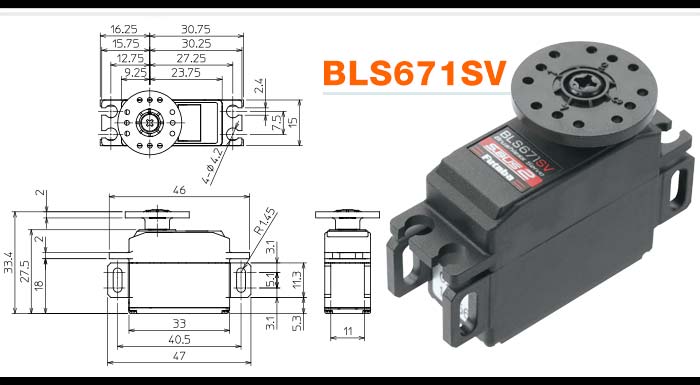

Dimensions: 33 x 15 x 27.1mm
Weight: 28 g
Power Requirements: DC 6V to 7.4V
Horn Screw Size: 3x6mm

SBus Programmable Defaults
Dead Band Degree: 0.30
Damper Factor: 80
Stretcher Gain: 2
Boost: 5
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Free
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off
Soft Start: 3.0
