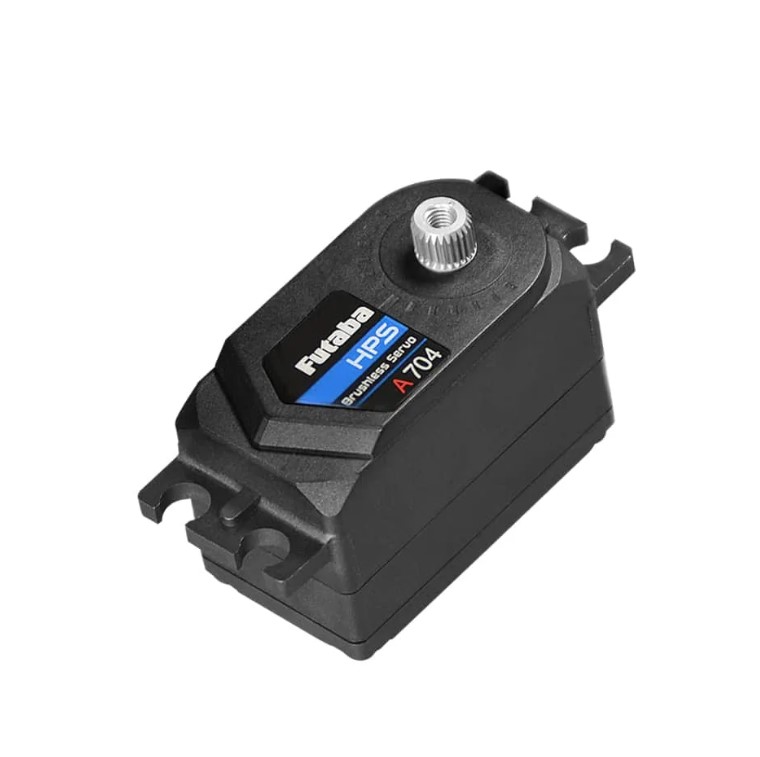

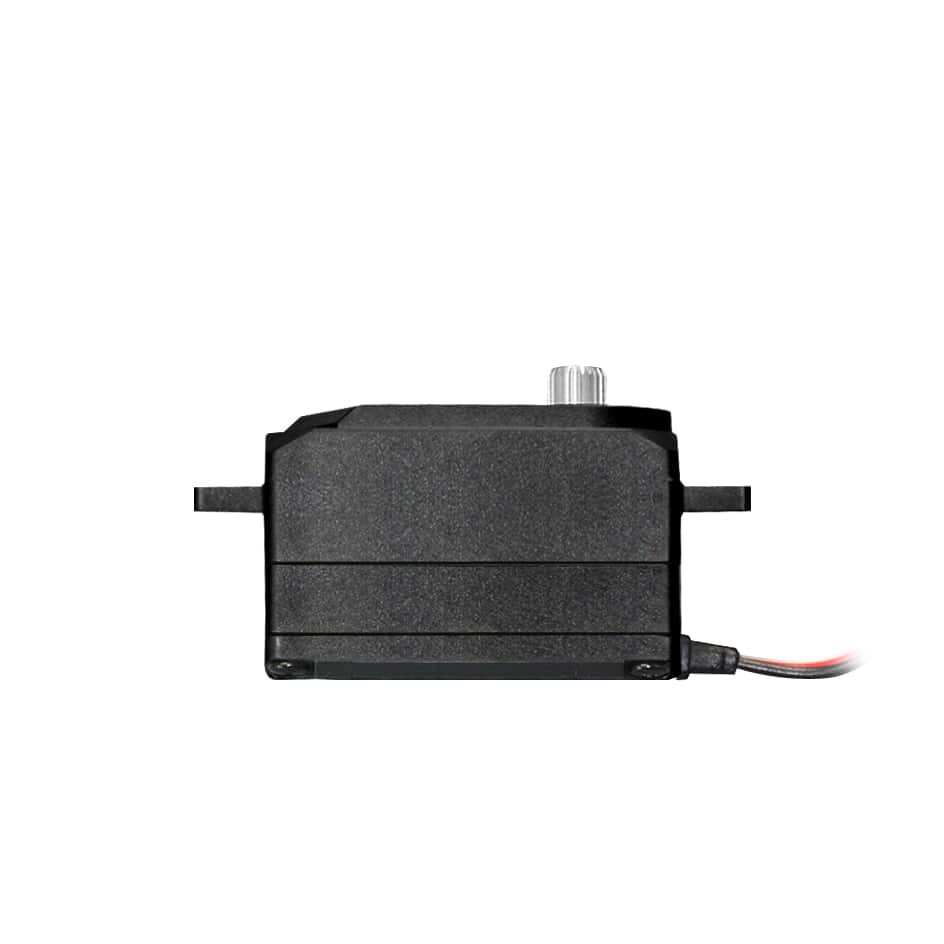

FUTABA HPS-A704 Servo (0.06sec/14.0 Kgf.cm,7.4v)

Description

HPS-A704 (S.Bus2/Brushless)

HPS-A704– S.Bus2 High-Voltage Standard Airplane Servo

High Performance Servo with Brushless Motor

FEATURES:
– For F3A airplanes.
– Programmable/High performance Brushless Servo.
– Custom New high speed Brushless Motor.
– Designed with F3A in mind
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Final gear material is metal.
– Upper/middle/bottom: Plastic case

SPEED:
0.07 sec/60°at 6.6V
0.06 sec/60° at 7.4V

TORQUE:
12.5 kgf/cm at 6.6V
173.6 ozf/in at 6.6V
14.0 kgf/cm at 7.4V
194.4 ozf/in at 7.4V

SIZE:
40.5 mm x 21 mm x 26.9 mm
1.59 in x 0.83 in x 1.06 in

WEIGHT:
48 g
1.69 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY OR BEC USE
