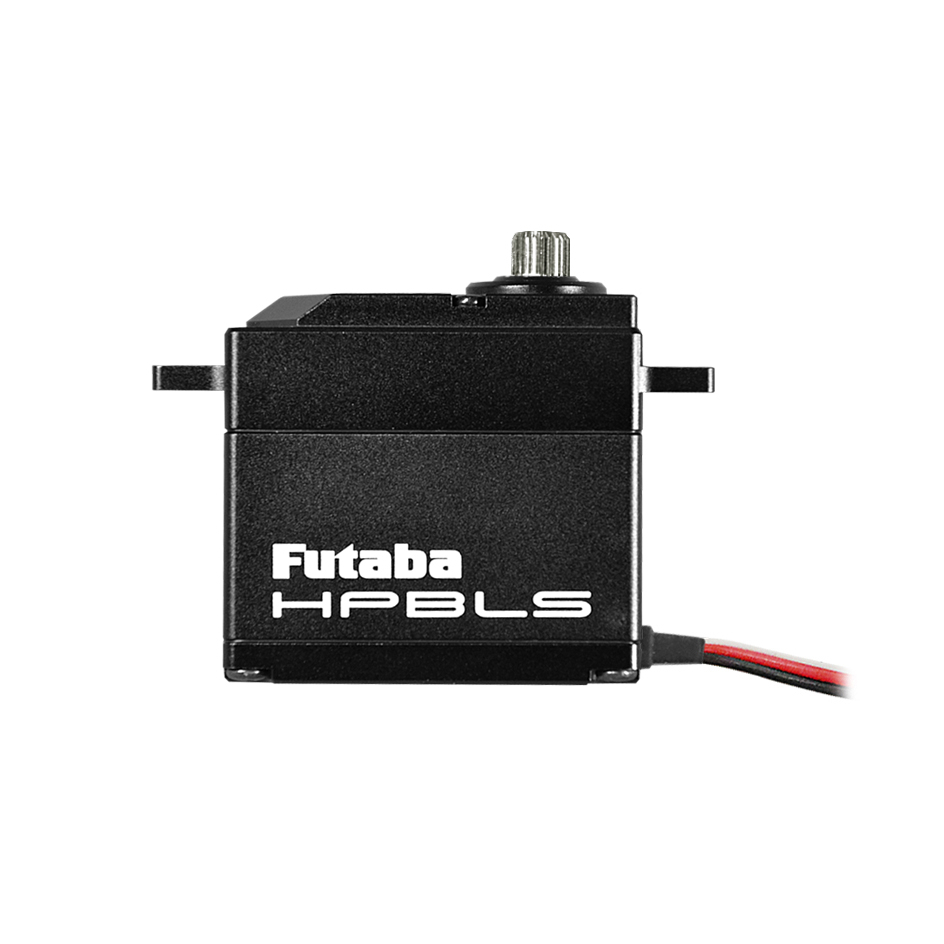

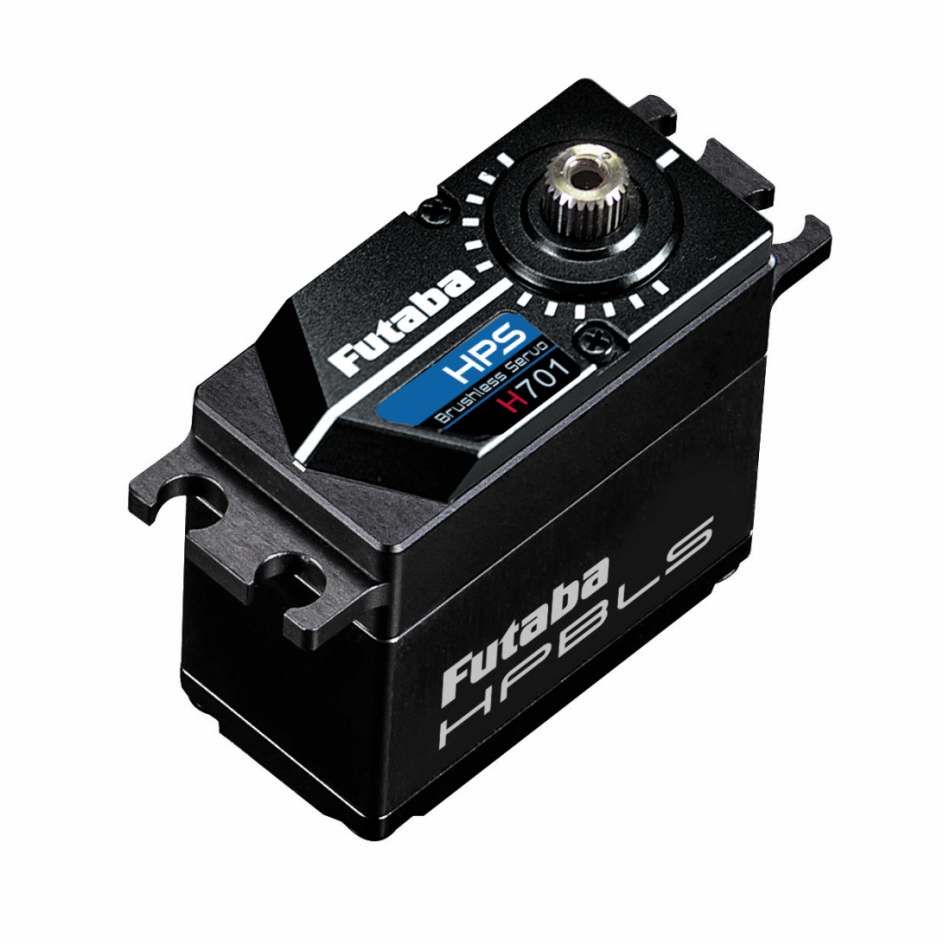

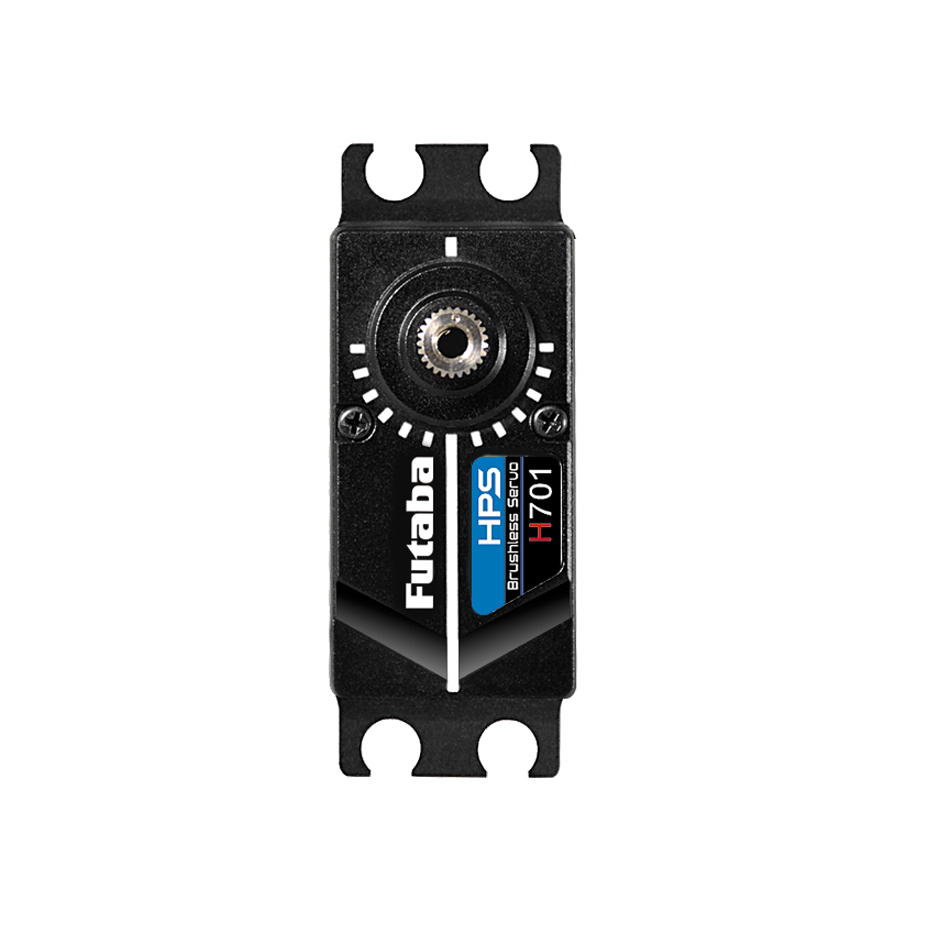

FUTABA HPS-H701 Servo (0.07sec/40.0 Kgf.cm,7.4v)

Description

FUTABA HPS-H701 Servo (0.07sec/40.0 Kgf.cm,7.4v)

Servos for large helicopters from the aerial HPBLS servo series that renew the sense of control.

This is a large helicopter servo from the HPBLS series that achieves amazing torque and low power consumption. The HPS series not only ensures amazing neutral accuracy and reliable torque, but also eliminates the relationship between speed power and power consumption, which was considered to be an antinomy, and realizes reliable power with low power consumption.



Response has been improved by high frequency control.

・HPBLS servo for large helicopters
・Metal 1-3 stage gear
・Titanium final stage gear
・Upper/middle/lower aluminum case
・S.BUS system

・Speed: 0.07sec/60°(7.4V) / 0.075sec/60°( 6.6V)
・Torque: 40.0kgf・cm(7.4V) / 36.0kgf・cm(6.6V)

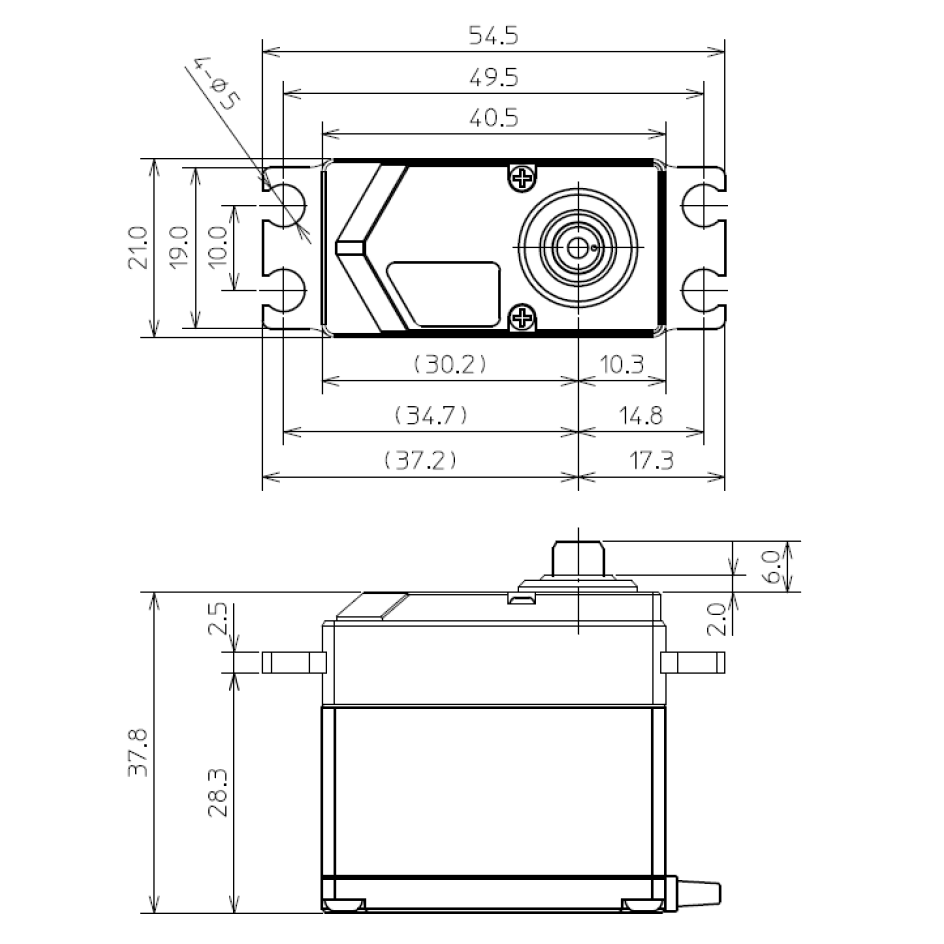

・Dimensions/Weight: 40.5×21.0×37.8mm / 76g

*Power supply 6.0 to 7.4V (dry batteries cannot be used)
*Dry batteries ,BEC is not available
