Description

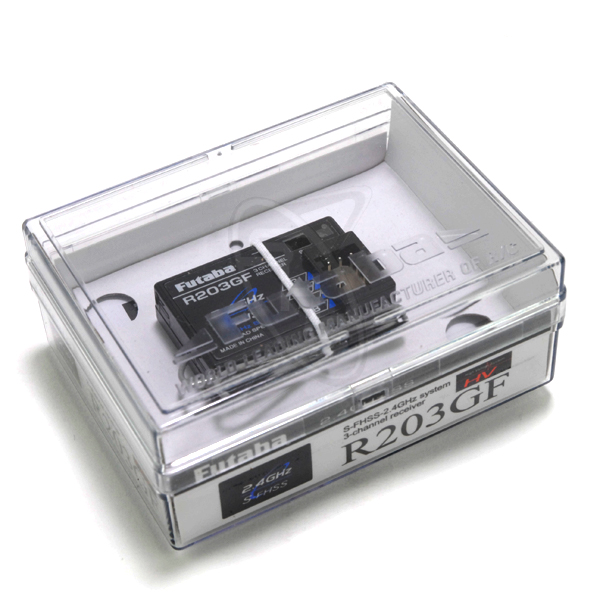

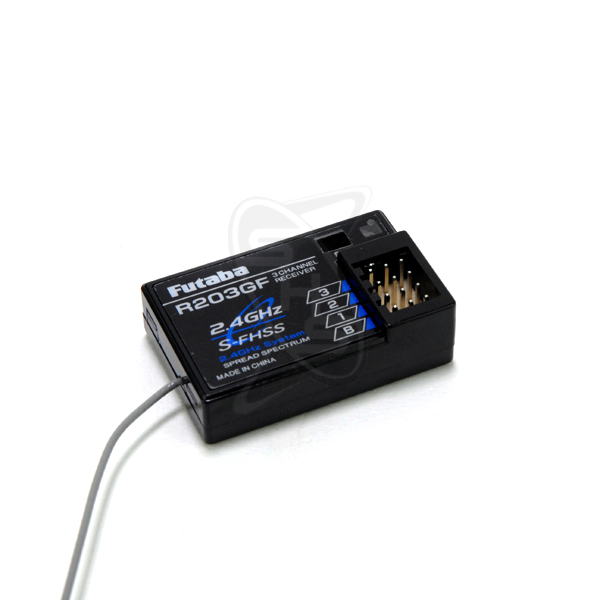

FUTABA R203GF 3-Channel S-FHSS Receiver
Affordable, interference-free operation
Prevents interference and promotes dependability with today’s best in frequency-hopping, spread-spectrum technology.
Easy-Link™ circuitry creates a fast, unbreakable transmitter-receiver link with push-button speed and ease!
Available for flight and surface applications.
Features:
– S-FHSS/FHSS auto detection
– Normal and High-Speed Modes:
* Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any type of servos or peripherals.
* High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts digital servos including the BLS series and most peripheral equipment such as brushless ESCs
In the Box:
– Futaba R203GF 2.4GHz S-FHSS 3-ch Receiver with Instructions
*Requires installing in model and linking to transmitter.
Specifications:
– Dimensions: 39 x 26 x 10mm
– Weight: 8g
– Operating Voltage: 4.8 – 7.4V (shared with servo)
– Battery Fail Safe Voltage: 3.8V**
– Current Drain: 30mA at no signal
** Battery fail safe voltage is set for 4-cell NiCd/NiMH battery. Battery F/S does not work properly when other type of battery is used
– Antenna Length: 7-1/2″
***Not compatible with Futaba FASST systems.
