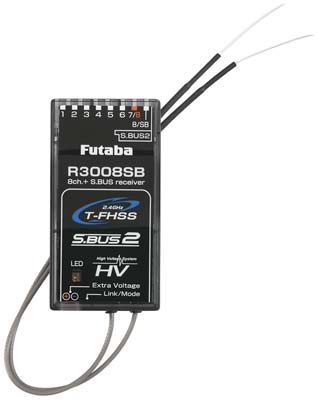

Futaba R3008SB T-FHSS 2.4GHz Receiver
Futaba R3008SB T-FHSS 2.4GHz Receiver - Image 3

Futaba R3008SB T-FHSS 2.4GHz Receiver

$90.65

New

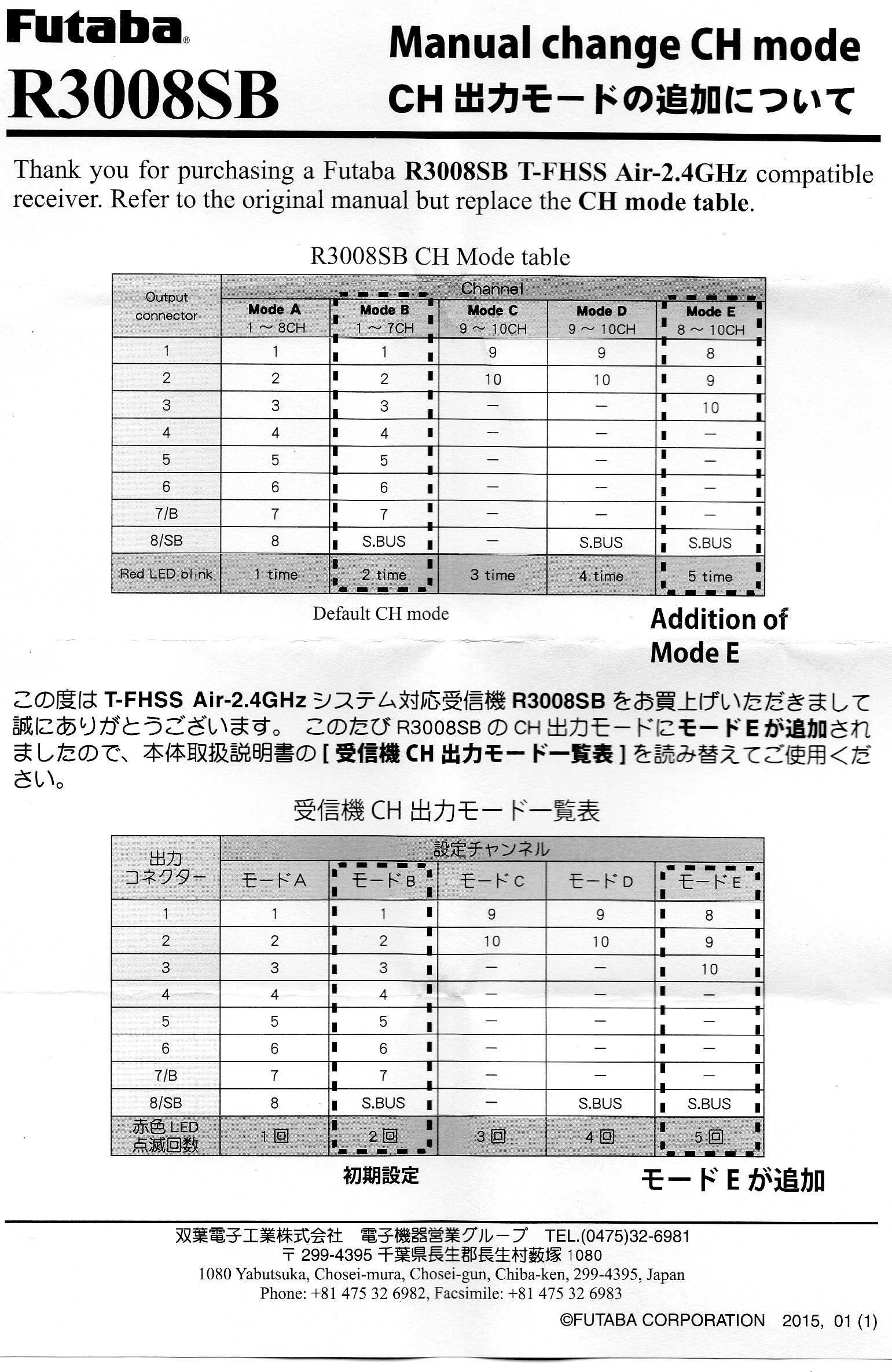

Futaba R3008SB receiver can also be programmed to “Mode E” to output PWM channel 8,9 and 10 from the first 3 sets of receiver pins; and S.Bus signal from the last set of receiver pins.

This is especially useful when the first 7 channels can be connected to devices (such as DJI NAZA, NAZE32, CC3D, Pixhawk, APM2.6, etc) via S.Bus connection. Channel 8, 9 and 10 can be used for camera gimbals control which connects directly to the R3008SB.

See add-on manual attached.

12 in stock

Purchase & earn 9 points!
Add to wishlist
SKU: R3008SB Categories: , , ,

Description

Futaba R3008SB is a bi-directional communication 2.4GHz Futaba compatible with Futaba radio (eg: Futaba 10J) using the S.BUS2, Standard PWM  and S.BUS output ports.

Specifications

  • Size: 0.98 x 1.86 x 0.56″ (24.9 x 47.3 x 14.3mm)
  • Weight: 0.36oz (10.1g)
  • Power Requirement: 4.8-7.4V
  • Battery F/S Voltage: Sets up with a transmitter
  • Extra Voltage Port: 0 ~ 70V DC

Click here for supplementary manual

Note: This receiver is not compatible with S-FHSS/FHSS/FASST/FASSTest systems.

Additional information

Weight 0.050000 kg
Dimensions 10 × 6 × 6 cm
Brand

FUTABA
