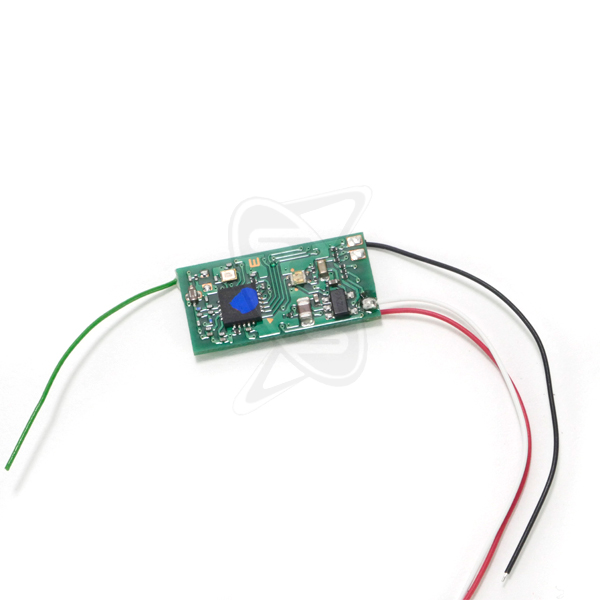

FUTABA R3206SBM Micro Receiver

Description

FUTABA R3206SBM Micro Receiver

Features

● T – FHSS Air – 2.4 GHz
● S.BUS + 5 channels
● Size: 20.0 × 10.0 × 3.0 mm
● Weight: 1 g or less
● Power source: 3.2 V to 8.4 V
● Battery F / S voltage: transmission Setting from the machine
● When using S.BUS, solder the S.BUS line of the S.BUS device to the S.BUS wiring of R3206SBM.
When using PWM, solder the signal line directly to 1 to 6 ch of board and use it.
Also solder the power wiring to each device.

* R3206SBM requires soldering wiring, shrinkable tube installation work fine.
