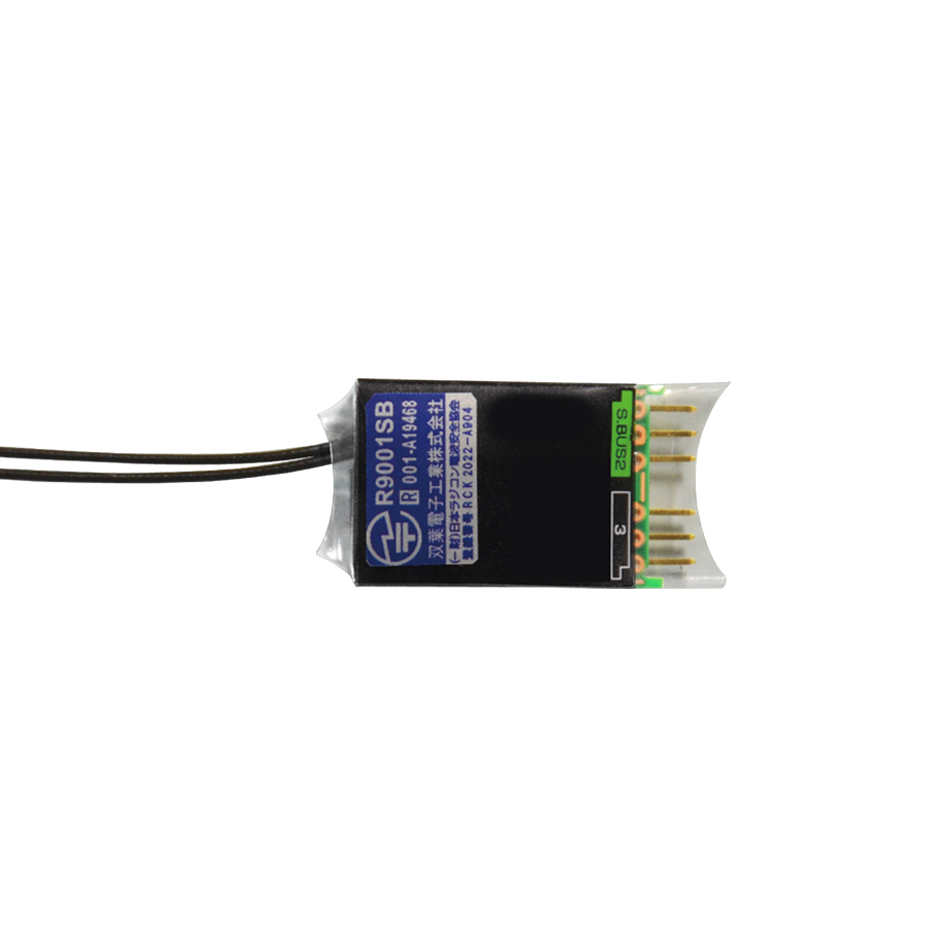

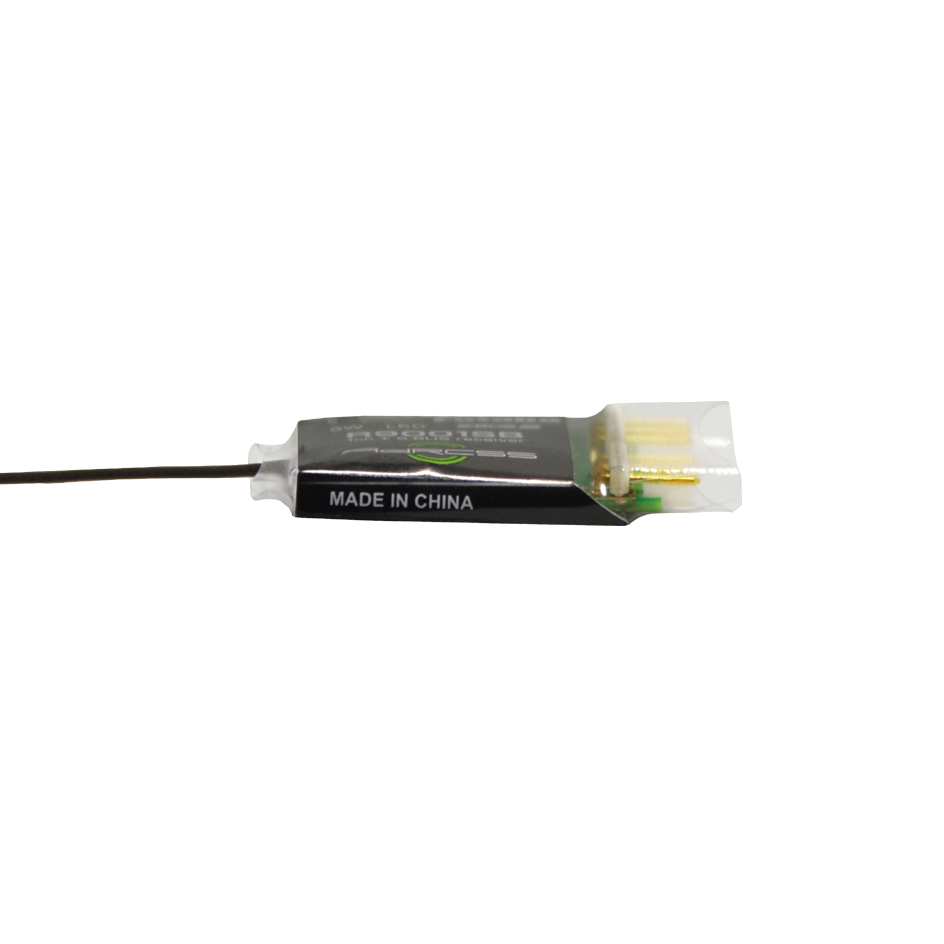

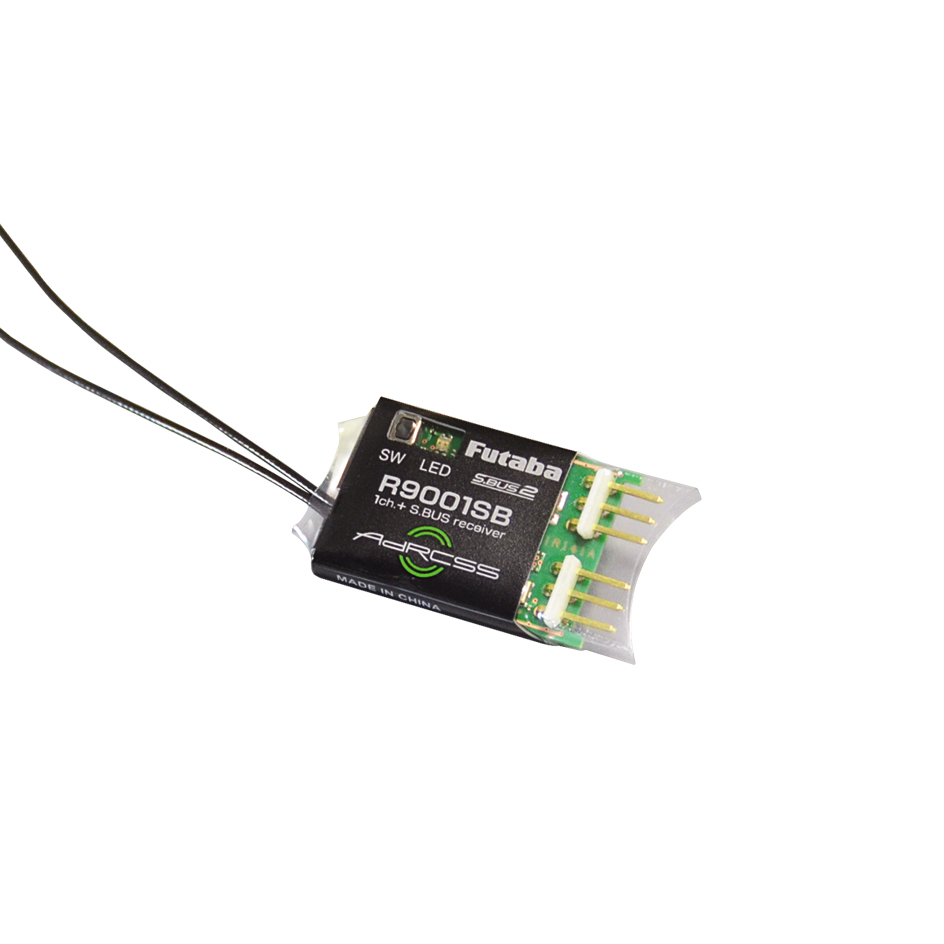

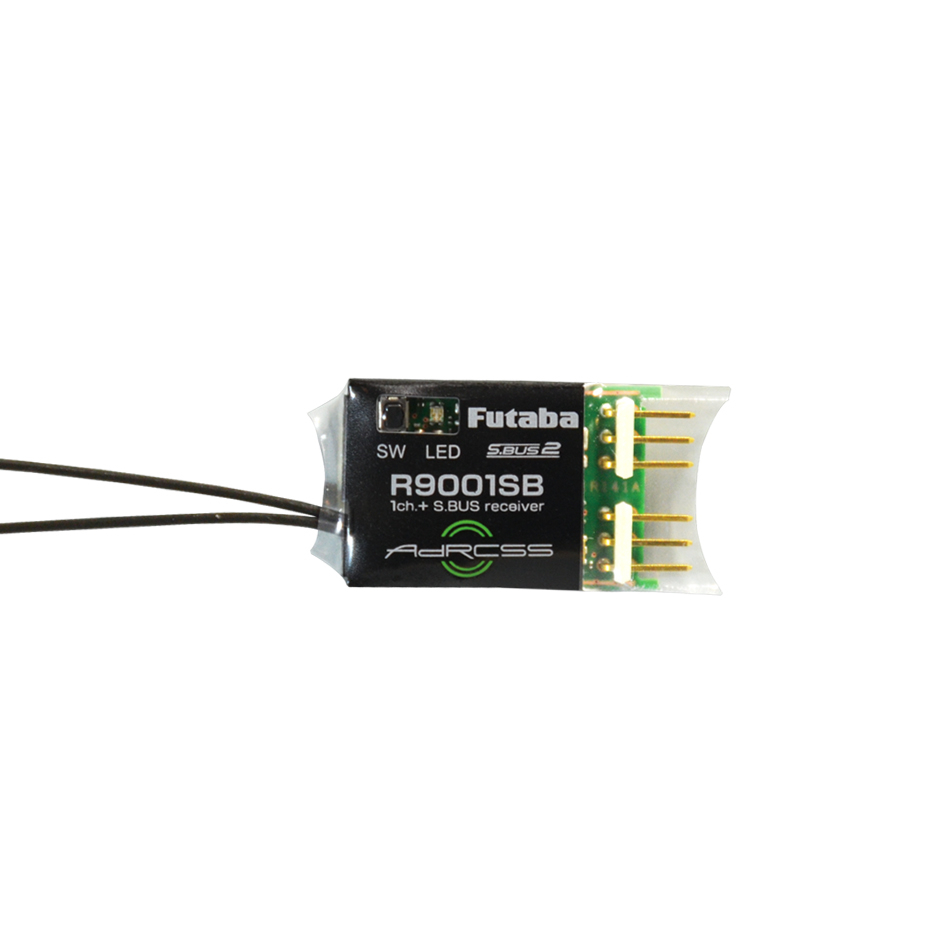

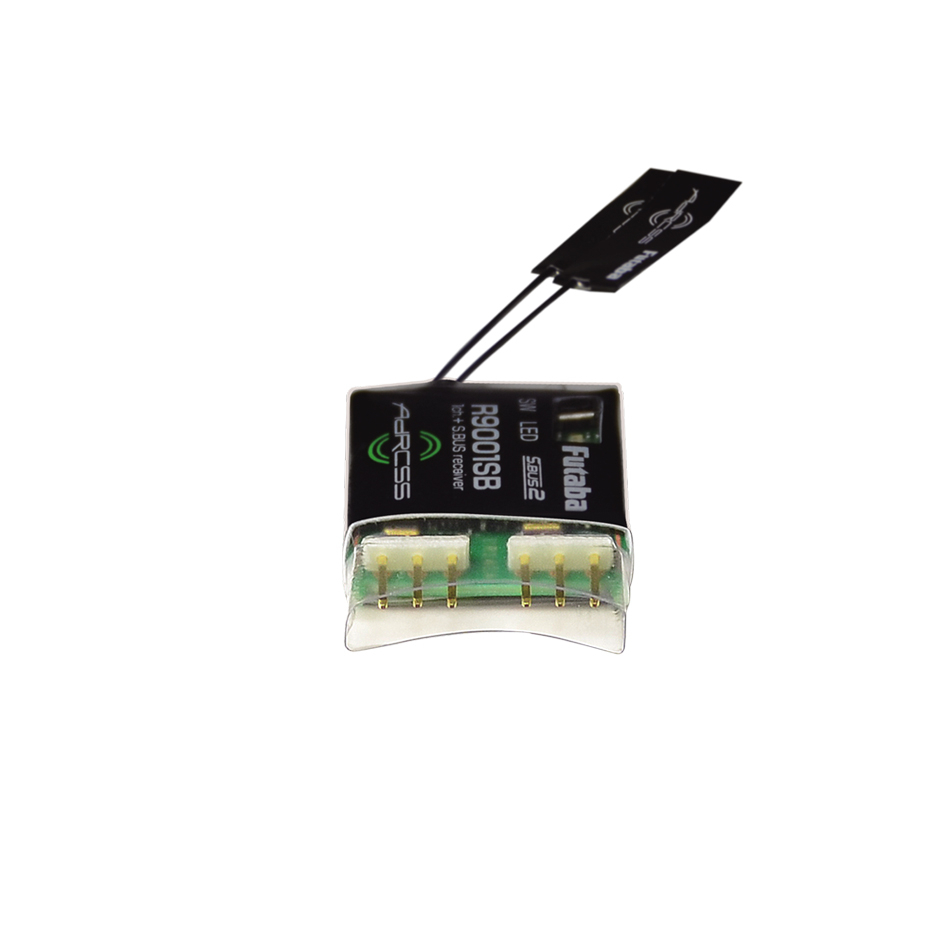

FUTABA R9001SB Receiver

Description

Specifications:

• ・AdRCSS 920MHz system S.BUS2 input/output/S.BUS output + conventional system 3ch output

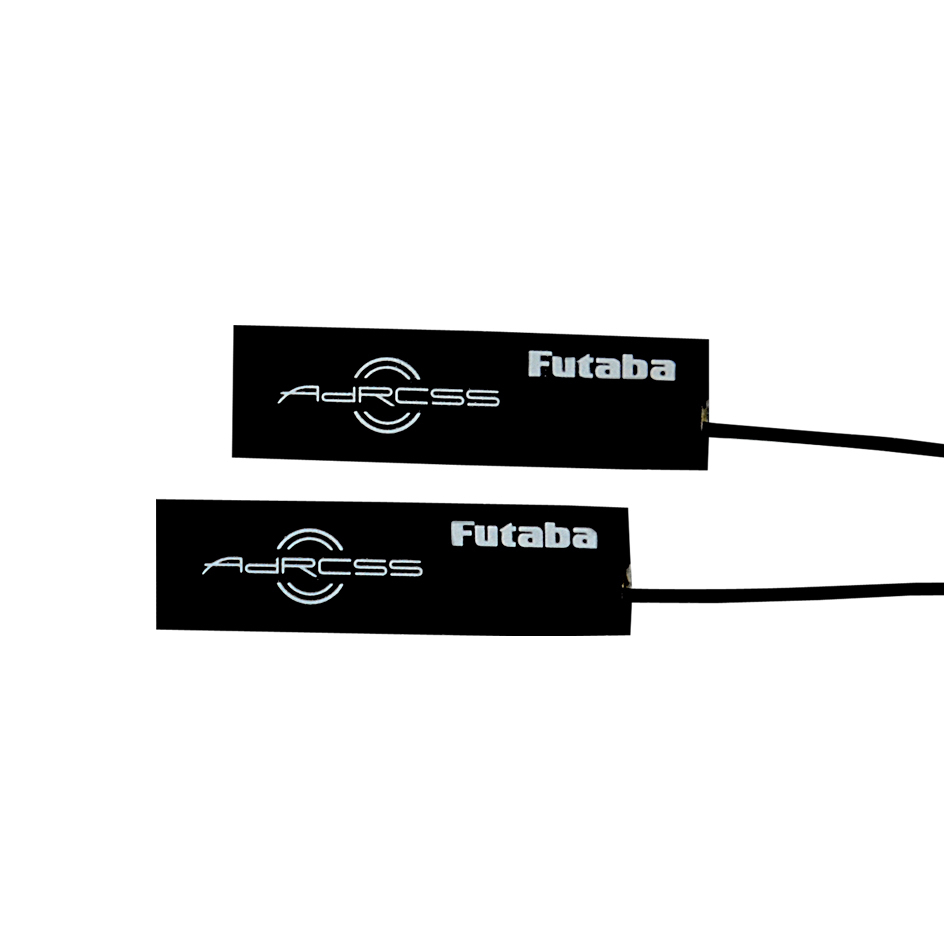

• ・Diversity antenna
• ・Rated 4.8V to 7.4V Dry batteries cannot be used
• ・F/S function (3ch only)
• ・Size 37.5×21.1×5.3mm
• ・Weight: 4.6g

*When using a BEC power supply, the capacity must match the conditions of the servo you are using.

　Also, do not use dry batteries.

*The maximum number of channels for S.BUS/S.BUS2 output varies depending on the transmitter. (Unused channels are neutral output.)

　Also, at F/S, the F/S setting ch is at the F/S position, and otherwise it is in the Hold state.

*It does not work on 2.4GHz systems. Compatible with TM-18 RF module.
