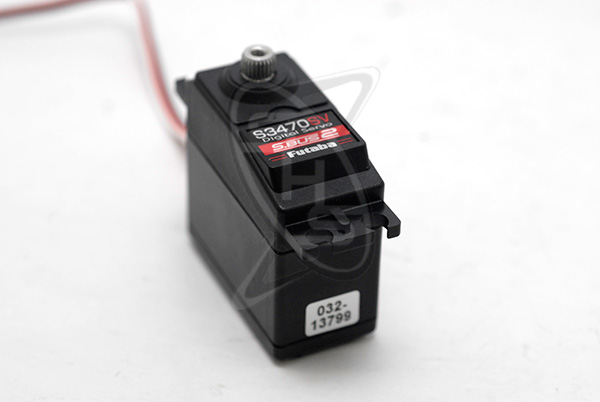

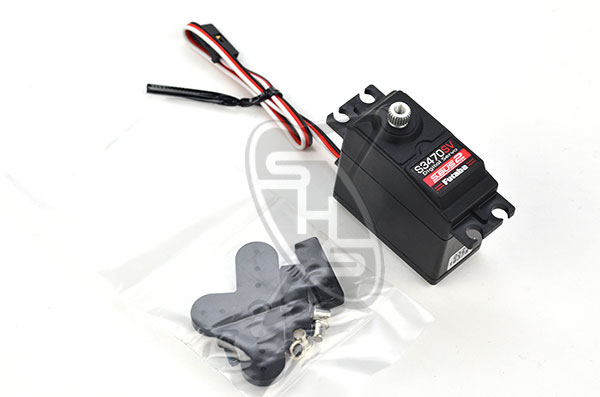

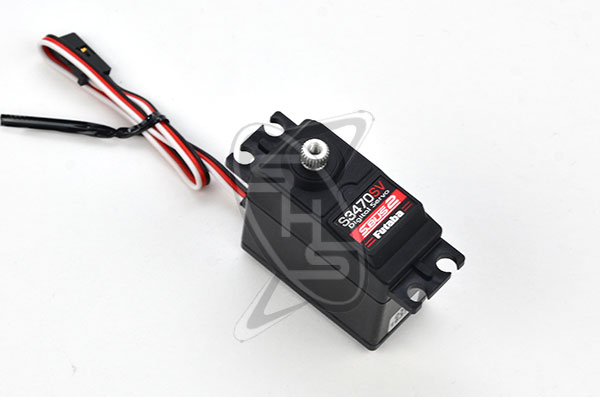

Futaba S3470Sv Servo

Description

S3470SV– S.Bus2 High-Voltage Standard Surface Servo

This is one of the latest High-Voltage S-Bus 2 Servo series.

SPEED:

0.14 sec/60°at 6.0V

0.12 sec/60° at 7.4V

TORQUE:

8.0 kgf/cm at 6.0V

111.1 ozf/in at 6.0V

9.6 kgf/cm at 7.4V

133.3 ozf/in at 7.4V

SIZE:

40 mm x 20 mm x 38.1 mm

1.57 in x 0.79 in x 1.50 in

WEIGHT:

43 g

1.52 oz

RATED VOLTAGE:

DC 6.0V-7.4V

OPERATING VOLTAGE:

DC 4.0-8.4V

NO DRY BATTERY USE
