Description

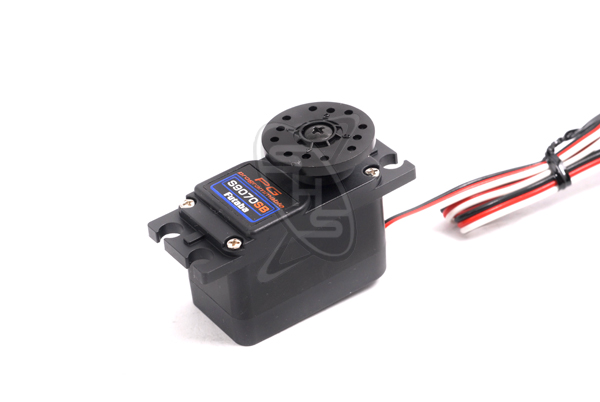

The Futaba S9070SB is a programmable fast and powerful S.Bus digital servo with dual built-in ball bearings and metal gears. It has a low profile height of only 23mm.
Specifications:
-
Speed:
0.12 sec/60 degrees at 7.2V
0.15 sec/60 degrees at 6.0V
0.18 sec/60 degrees at 4.8V -
Torque:
6.8kg.cm at 7.2V
5.5kg.cm at 6.0V
4.5kg.cm at 4.8V -
Size:
35.9 x 19.5 x 24.9 mm -
Weight:
32 g
What is S.Bus?
Different from conventional radio control systems the Futaba S.Bus System uses data communication to transmit control signals from a receiver to a servo, gyro, or other S.Bus compatible device. This data includes commands such as “move the channel 3 servo to 15 degrees, move the channel 5 servo to 30 degrees” to multiple devices. The S.Bus devices execute only those commands for their own set channel. For this reason, it can be used by connecting multiple servos to the same signal line.
Click to check out these videos to learn more about how the S-Bus system works!
Click Here and let us show you how the Futaba S.Bus System works.
