Description

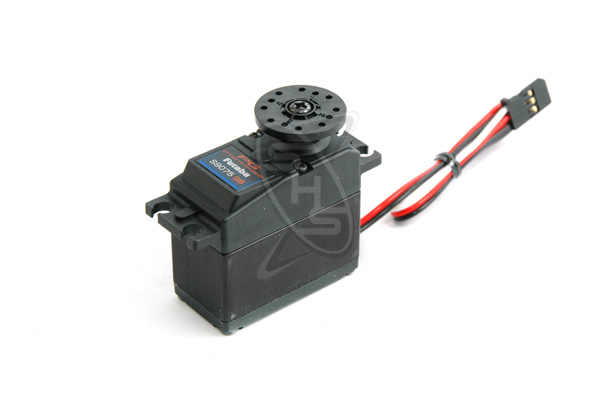

The Futaba S9075SB is a programmable digital hi-torque metal gear servo made compatible with the Futaba S.Bus System. It is equipped with dual ball bearings and can be easily programmed with the SBC-1 Channel Setting Tool, S.Bus receiver or PC Link software.
Specifications:
| Speed: | 0.14 sec/60 degrees at 6.0V |
| Torque: | 30.6 kg.cm at 6.0V |
| Size: | 40.5 x 21.0 x 37.4 mm |
| Weight: | 71g |
What is S.Bus?
Different from conventional radio control systems the Futaba S.Bus System uses data communication to transmit control signals from a receiver to a servo, gyro, or other S.Bus compatible device. This data includes commands such as “move the channel 3 servo to 15 degrees, move the channel 5 servo to 30 degrees” to multiple devices. The S.Bus devices execute only those commands for their own set channel. For this reason, it can be used by connecting multiple servos to the same signal line.
Click to check out these videos to learn more about how the S-Bus system works!
Click Here and let us show you how the Futaba S.Bus System works.
