Description

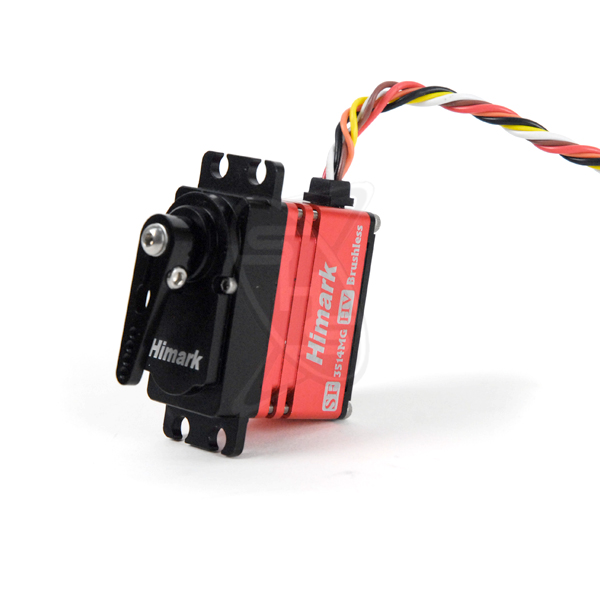

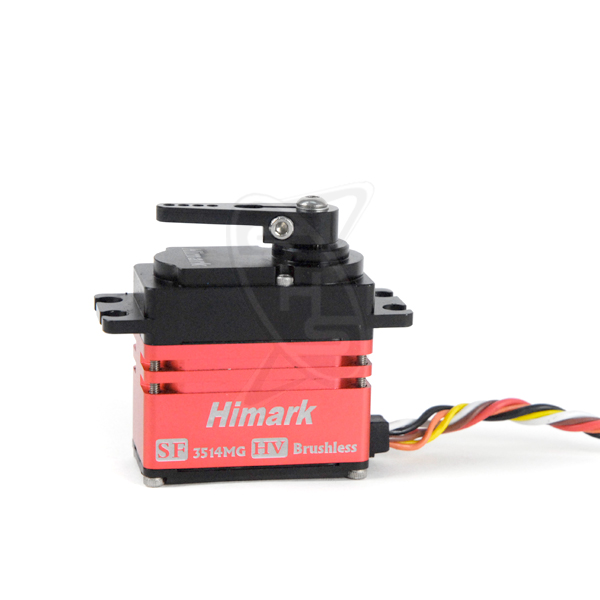

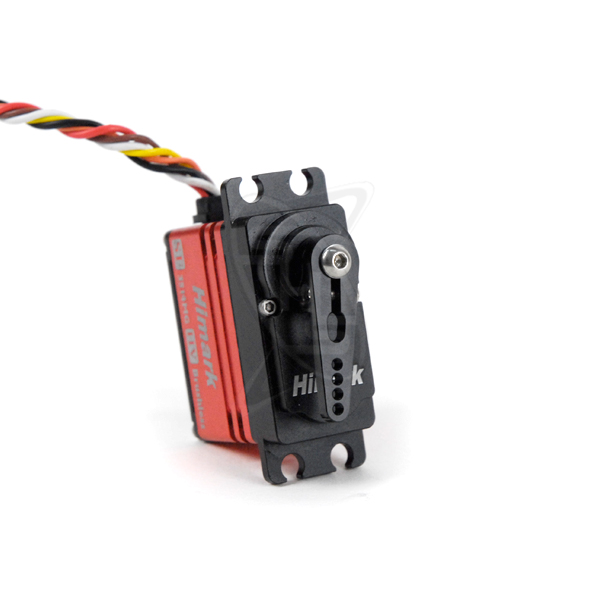

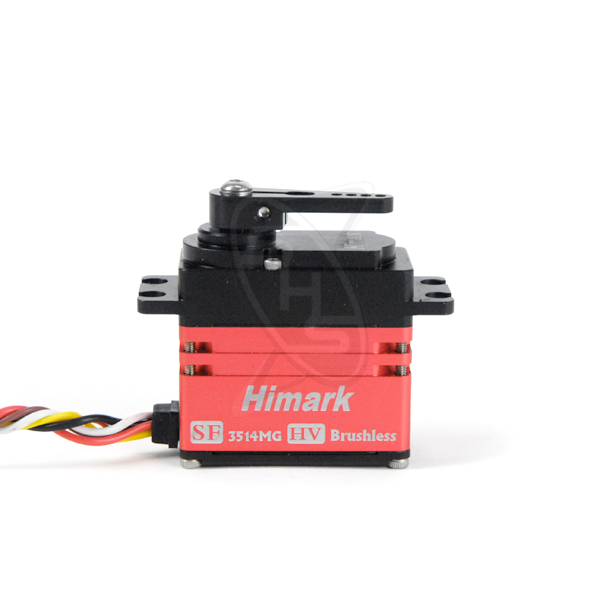

HIMARK SF3514MG Brushless Servo is a IP67 Weather rating brushless servo used in commercial UAVs.
Here are the specifications of this servo:
| Control Mode | PWM/UART/CAN/485 (Optional) |
| Pulse width | 1500us +/- 500us |
| Operational Angle | +/- 60 degrees |
| Working Voltage | 4.8 – 8.4V (2S Lipo) |
| Test Voltage | 12V |
| Locked Torque | 35kg/cm |
| Rated Torque | 17kg/cm |
| No-load Current | 0.2A |
| Locked Current | 2.5A |
| Motor Type | Brushless |
| Dimension | 40 x 20 x 43mm |
| Weight | 83g |
| Gear Material | Steel |
| Water Proof Rating | IP67 |
