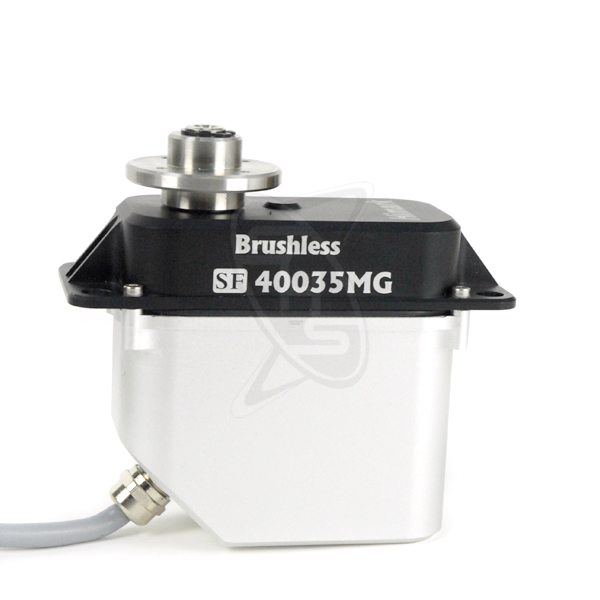

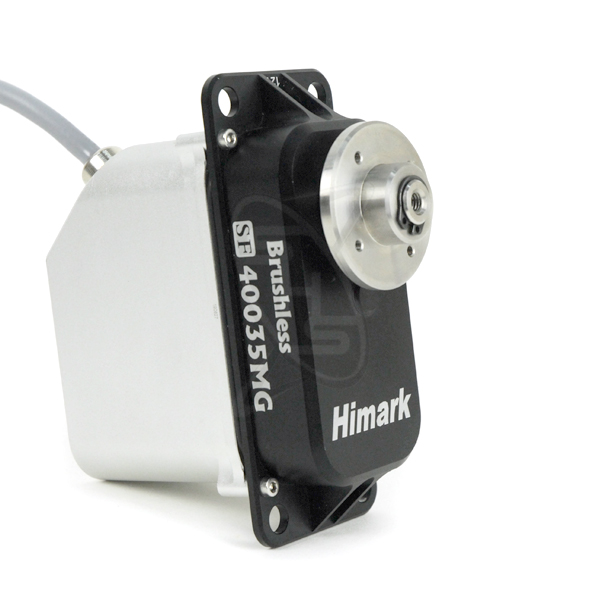

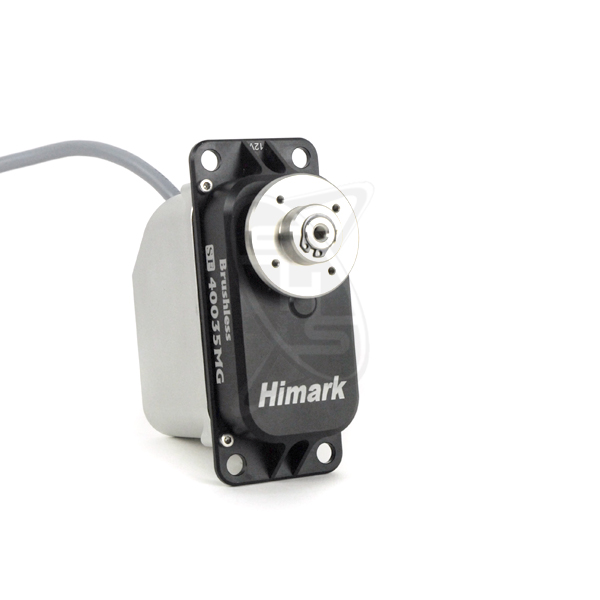

HIMARK SF40035MG Brushless Servo
HIMARK SF40035MG Brushless Servo - Image 3
HIMARK SF40035MG Brushless Servo - Image 4
HIMARK SF40035MG Brushless Servo - Image 5

HIMARK SF40035MG Brushless Servo

$1,154.20

HIMARK SF40035MG Brushless Servo is used in commercial UAVs with overloading protection.

1 in stock

Purchase & earn 115 points!
Add to wishlist
SKU: 008-00113 Categories: , , , , , ,

Description

HIMARK SF40035MG Brushless Servo

This is a IP67 rated Brushless Servo. It has a rated torque of 200kg/cm at 12V.

Here are the specifications of this servo:

Control ModePWM/UART/CAN (Optional)
Input Pulse Width1500us +/- 500us
Working Voltage8 - 14V
Working Temperature -20 - 60 degrees celcius
Locked Torque400kg/cm
Rated Torque200kg/cm
No-load Current0.6A
Locked Current4A
MotorBrushless
Dimension132 x 120.8 x 55 mm
Weight710g
Water Proof LevelIP67


Additional information

Weight 0.140000 kg
Dimensions 22.5 × 16.5 × 6 cm
