Description

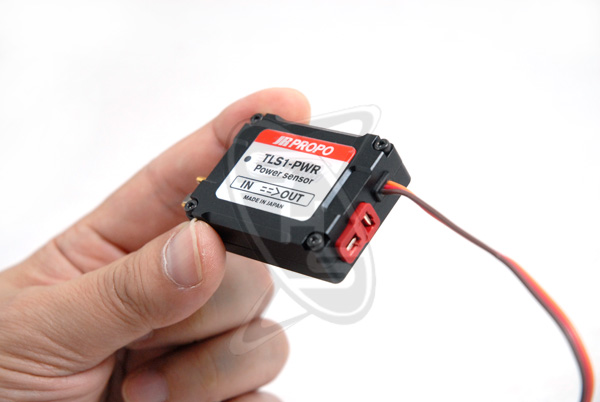

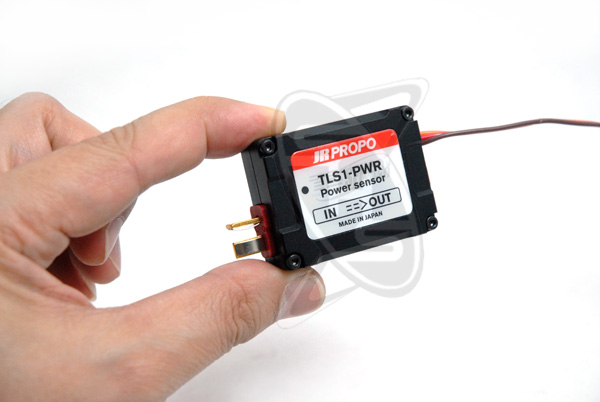

JR TLS1-PWR Electric Power Sensor is a telemetry device that is designed to display the status of your heli battery during flight on your transmitter screen. Compatible to JR 2.4GHz DMSS radio systems like XG8 and XG11.
Features:
-
By simulaneously measuring the voltage and current, the current electric power output and total power consumption can be calculated.
-
A power sensor that has a 1 μsec high speed response and a temperature correcting function is incorporated to enable measurement with a fast response.
-
An operation confirmation LED is incoporated which has high visibility.
Specifications:
-
Measurement values: Voltage (V), Current (A), Peak current (A), Electric power (W), Total power consumption (mWh)
-
Operating Voltage: 4.0~18.0V
-
Max. measurement voltage/current: 18.0V/80A
-
Size: 44 x 33 x 14mm
-
Weight: 48g (including cables)

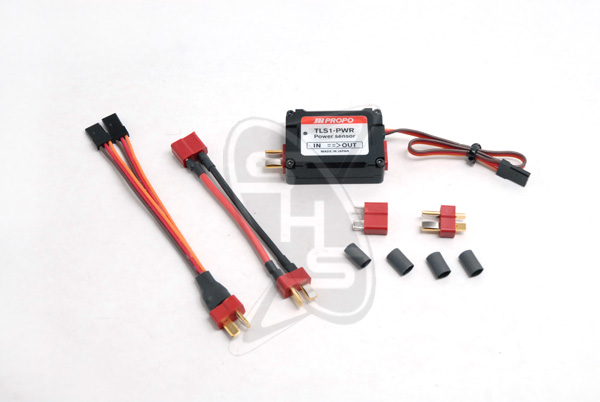

This Package includes:
- TLS1-PWR/Sensor Main Unit
- Receiver Connecting Harness
- Rechargeable Battery Connecting Extension Harness
- Spare Connectors x2
- Shrink Tubes x4
- Operating Manual
