Description

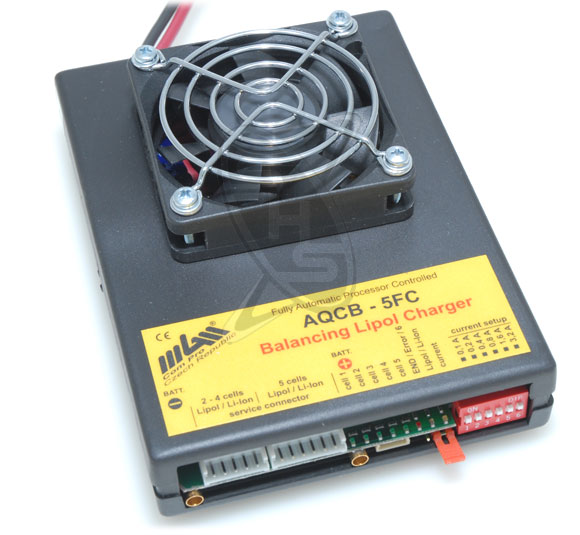

If you want to charge your lithium pack at more than 1C, AQCB-5F is the answer. This charger will charge your lithium pack up to 6.3A, topping up to 70% of your pack's capacity in possibility 30 mins (dependent on the capacity of the pack and the selected charging current).
And if you want to know more about how your lithium pack is being 'balance' charged and how much of current is going into your pack, you can also view the charging parameters from your PC using the MGM USBCOM+ communication module.

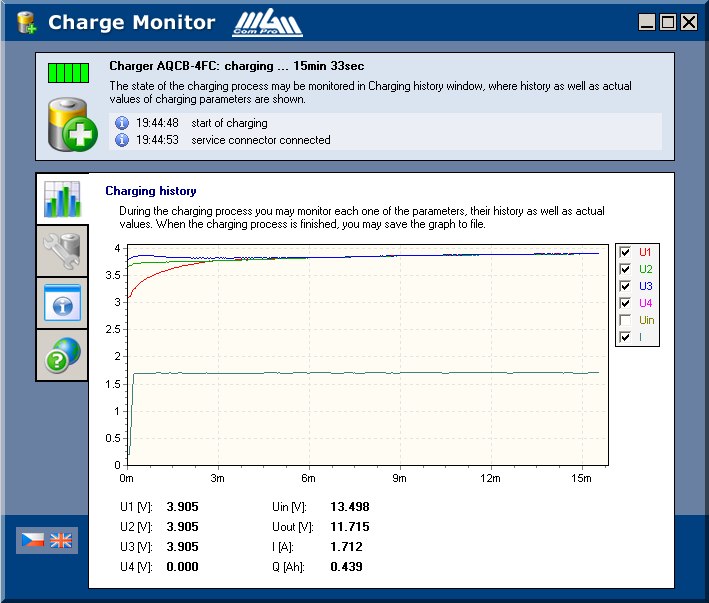

(The screenshot (Photo Gallery) for AQCB-4F, an older version, while AQCB-5F is the latest charger from MGM)
The AQCB-5F is light weight and you can 'balance' charge your lithium pack with 12v DC power supply.Other features include:
1. Number of cells is automatically detected
2. Cells are actively balanced and are not unbalanced after charging.
3. Built-in fan is turned on automatically if the temperature inside the charger exceeds a set limit. All states of the charger are indicated using color LED and a beeper.
4. Charger can be easily connected to PC using USBCOM+ communication module so that actual currents, voltage of cells, received charge are displayed both numerically and in graphs.
5. Charger is feed from a car 12V battery or a means well 12 - 15V / 10A
6. Charger also features shortcut protection and reversal of polarity protection.
Other specifications:
| Input voltage: | DC12V or Power Supply 12-15V |
| No. of lipo cells: | 1-5 or 1-6 without balancing |
| Minimal charging current: | 0.1A |
| Maximum charging current: | 6.3A |
| Current setting steps: | 100mA |
| Charging method: | CC-CV, pulse operation |
| Balancing method: | Active balancing |
| Accuracy of balancing: | 6mV |
| Connection to PC: | USBCOM+ and CC_03 cable |
| Weight: | 250g |
| Dimension: | 128x94x45mm |
