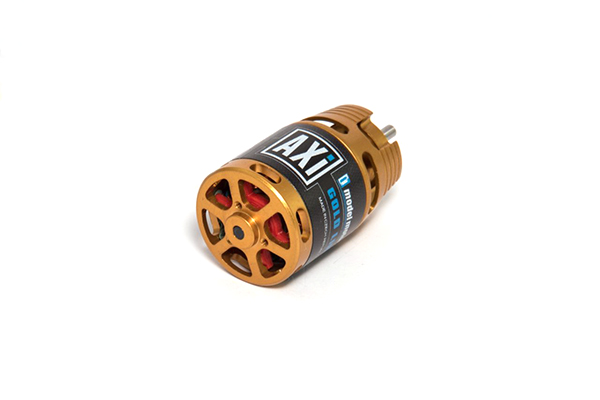

MODEL MOTORS AXI 2212/26 Gold Line V2 Long
You will be surprised by the very high power delivered by these small and very robust, but light weight (59g with power cables) brushless motors with rotating case suitable for all models of Slow and Park Fly size weight up to 650 g. The hardened steel 3,17mm diameter shaft is supported by two large ball bearings which ensure very good mechanical reliability with front or radial mounting. As a result of using the latest ferromagnetic materials the AXI 2212/26 V2 motors offer extremely high efficiency and high load capability for their weight.
AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. Delivered without prop. holder and Radial mount set!
Best Practices
Technical Specification
| No. of cells | 2-3s Li-Poly |
| RPM/V | 920 RPM/V |
| Max. efficiency | 82% |
| Max. efficiency current | 6-10 A (>73%) |
| No load current | 0.45 A |
| Current capacity | 14 A/60s |
| Internal resistance | 210 mohm |
| Dimensions | 27.7 x 39.4mm |
| Shaft diameter | 3.17 mm |
| Weight | 59.5 g |
| Max. power | 138 W |
