Description

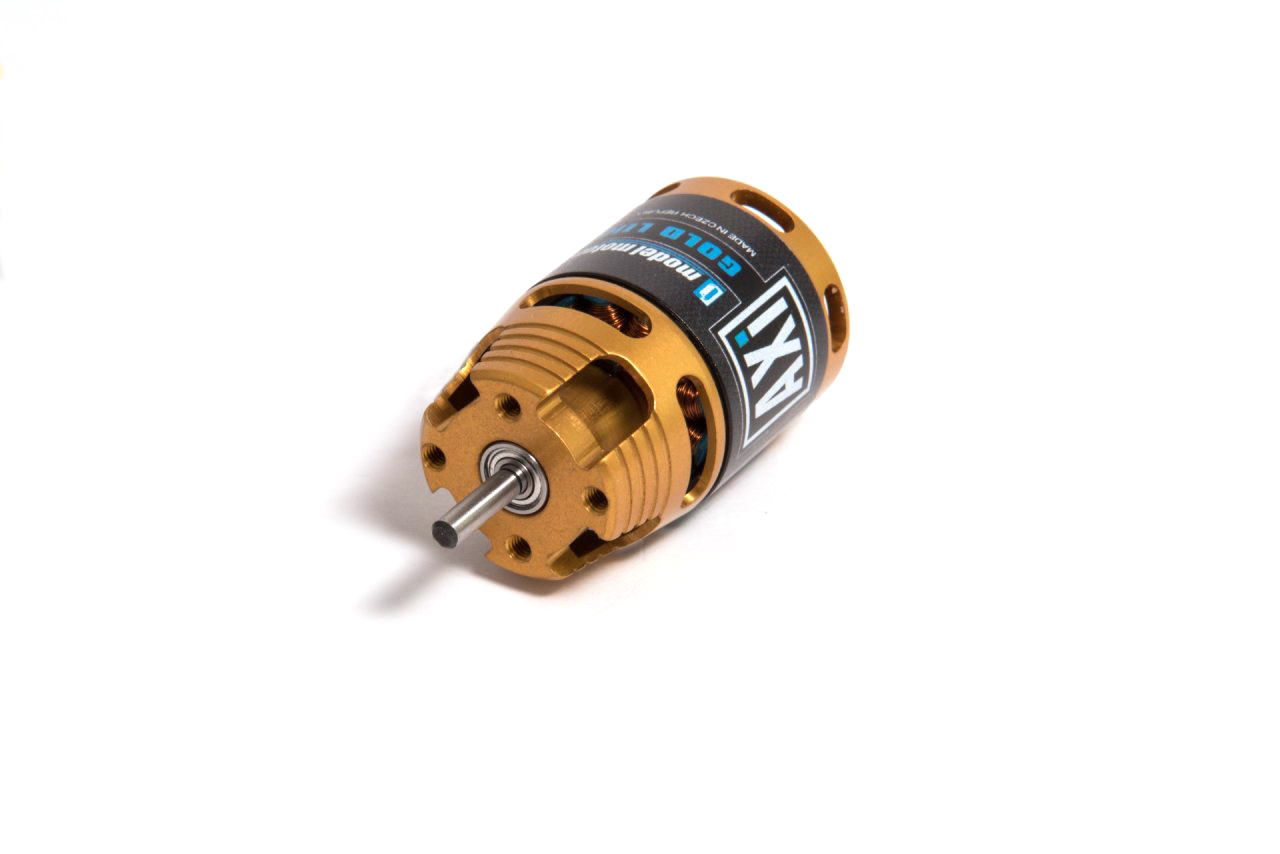

MODEL MOTORS AXI 2217/12 Gold Line Long F5J
New small and powerfull motor AXI 2217/12 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 1000g and for light sailplanes up to 1200g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.
Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market.
Best Practices:
| WEIGHT OF MODEL | LI-POL CELLS | MAX CURRENT | ESC | PROPELLER | |
| SAILPLANE | 900g | 2s | 32A/60s | 30A | 11″x4″ |
| SAILPLANE | 1200g | 3s | 32A/60s | 30A | 9.5″x5″ |
| HOTLINER | 800g | 3s | 32A/60s | 30A | 9″x6″ |
Technical Specification:
| No. of cells: | 2-3s Li-Poly |
| RPM/V: | 1380 RPM/V |
| Max. efficiency: | 86% |
| Max. efficiency current: | 15-24A (>75%) |
| No load current: | 0.4A |
| Current capacity: | 32A/60s |
| Internal Resistance: | 61mohm |
| Dimensions: | 27.7 x 64.6mm |
| Shaft diameter: | 4mm |
| Weight: | 84g |
| Max. Power: | 330W |
