Description

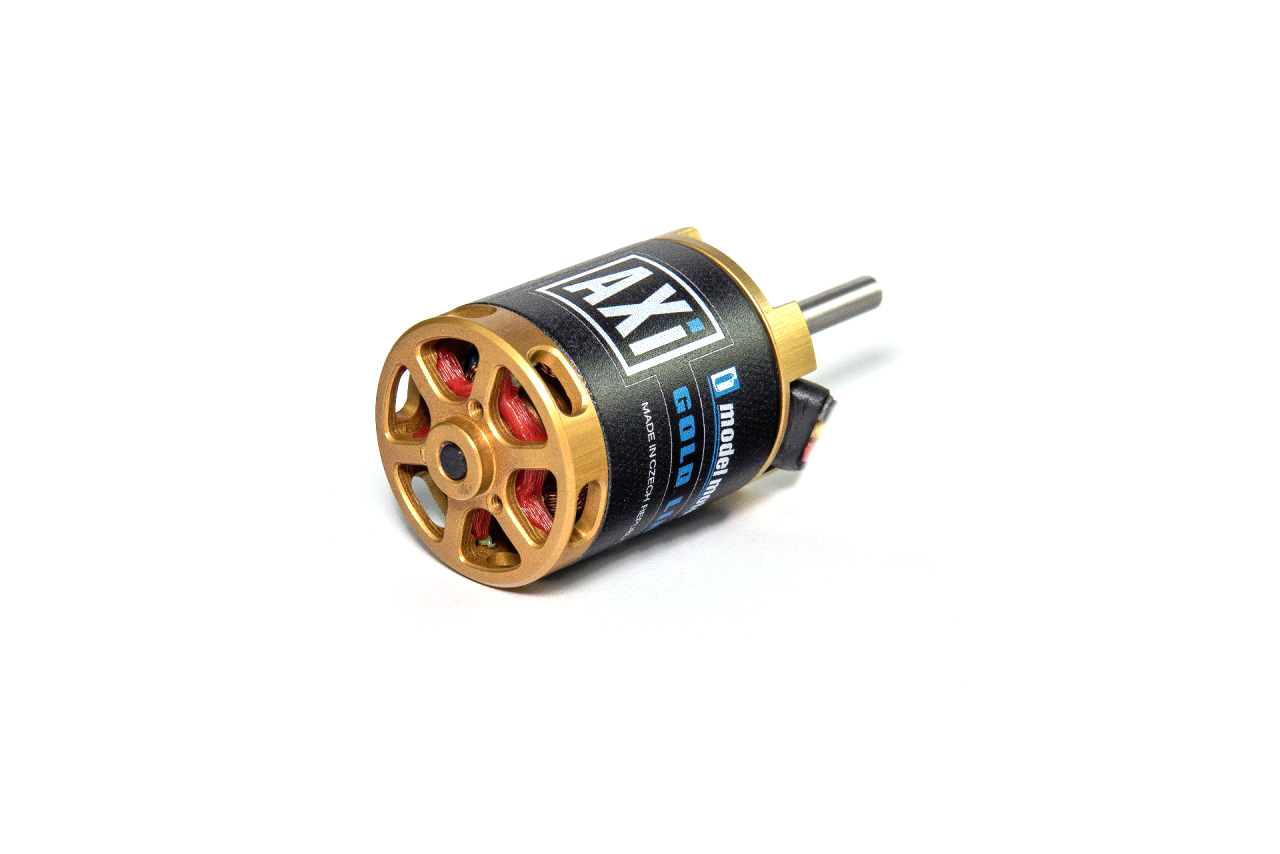

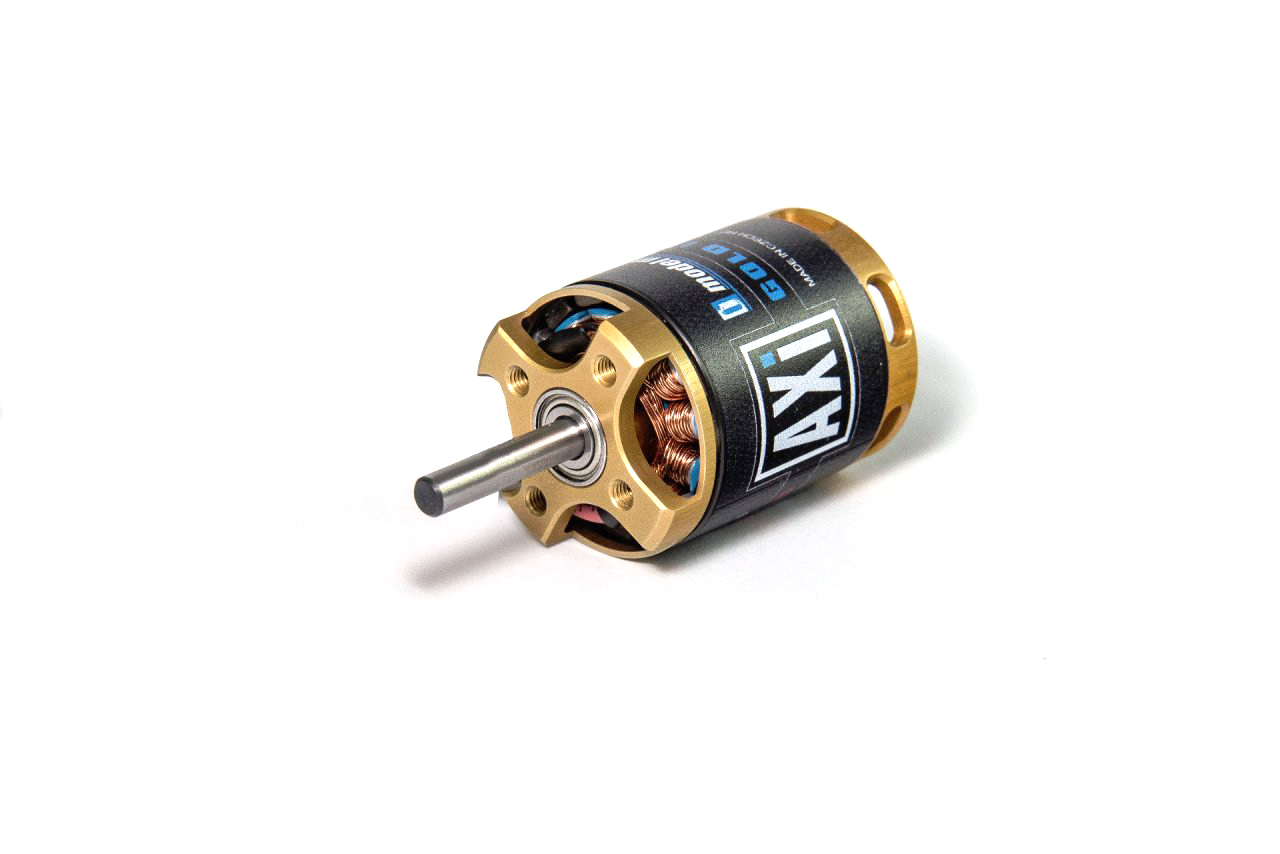

MODEL MOTORS AXI 2220/12 Gold Line V2
New small and powerfull motor AXI 2220/12 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 1100g and for light sailplanes up to 1300g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.
Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. A feature of the AXI design is provided for radial mounting (see picture below).
Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.
Best Practices:
| WEIGHT | LI-POL | MAX CURRENT | ESC | PROPELLER | |
| SAILPLANE | 1200g | 2s | 30A / 60s | 30A | 13″ x 6.5″ |
| AEROBATIC | 1100g | 3s | 30A / 60s | 30A | 7″ x 7″ |
| 3D | 900g | 3s | 30A / 60s | 30A | 9″ x 7.5″ |
Technical Specification:
| No. of cells | 2-3s Li-Poly |
| RPM/V | 1200 RPM/V |
| Max efficiency | 87% |
| Max efficiency current | 20-28A (>75%) |
| No load current | 1.5A |
| Current capacity | 40A / 60s |
| Internal resistance | 76 mohm |
| Dimensions | 27.7 x 37.9mm |
| Shaft diameter | 4mm |
| Weight | 87g |
| Max Power | 450W |
