Description

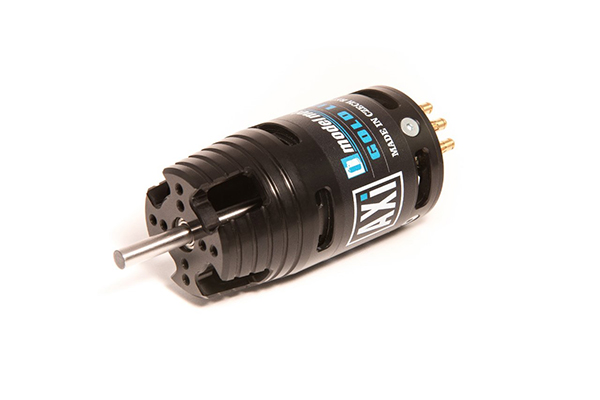

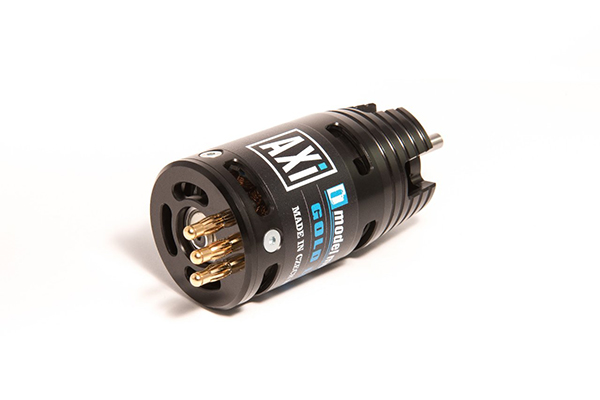

MODEL MOTORS AXI 2808/24 Cyclone KV1190
High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 5mm diameter shaft and is supported by three ball bearings.
Delivered without prop. holder and Radial mount set.
Best Practices
Technical Specification
| No. of cells | 2-3 Li-Poly |
| RPM/V | 1190 RPM/V |
| Max. efficiency | 84% |
| Max. efficiency current | 6-15 A |
| No load current | 1 A |
| Current capacity | 25 A /60s |
| Internal Resistance | 115 mohm |
| Dimensions | 40 x 57mm |
| Shaft diameter | 5 mm |
| Weight | 130 g |
| Max. power | 240 W |
