Description

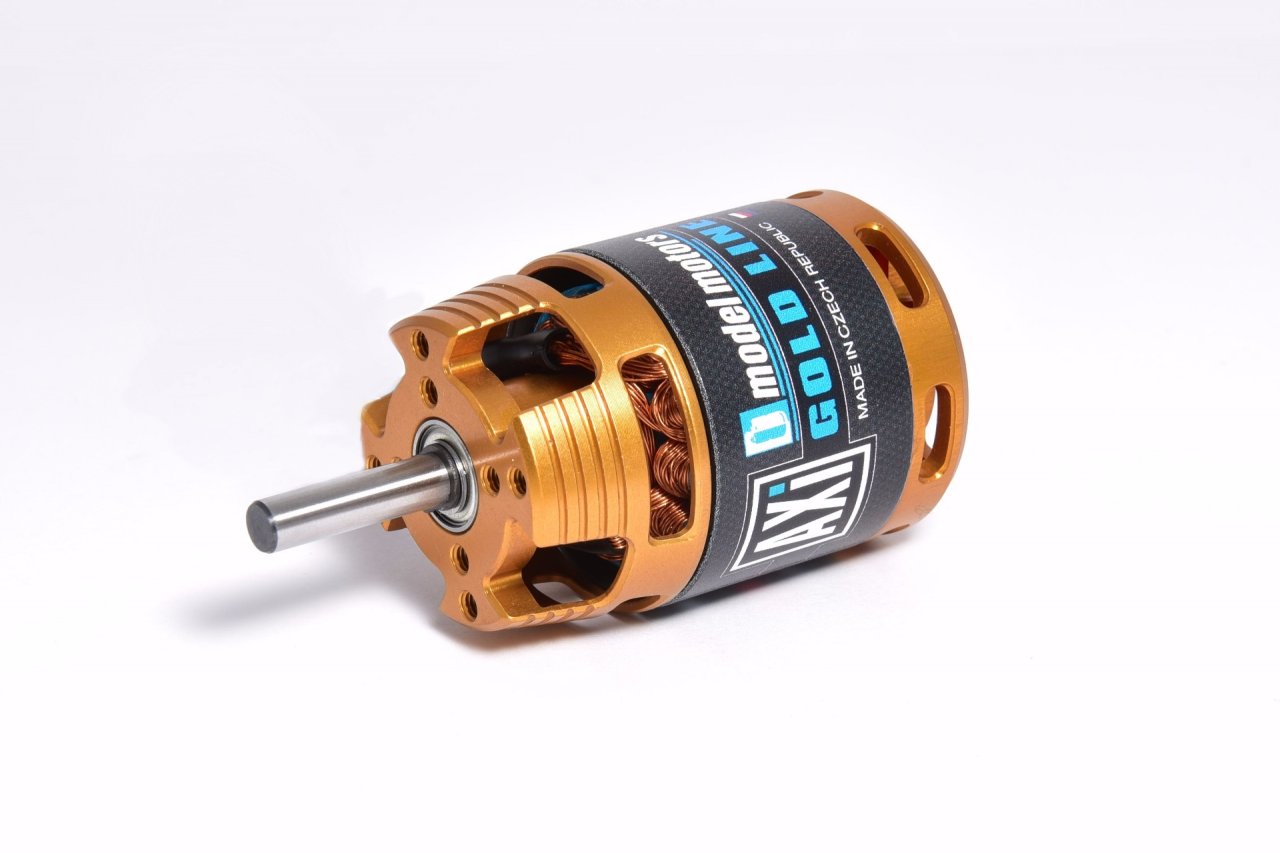

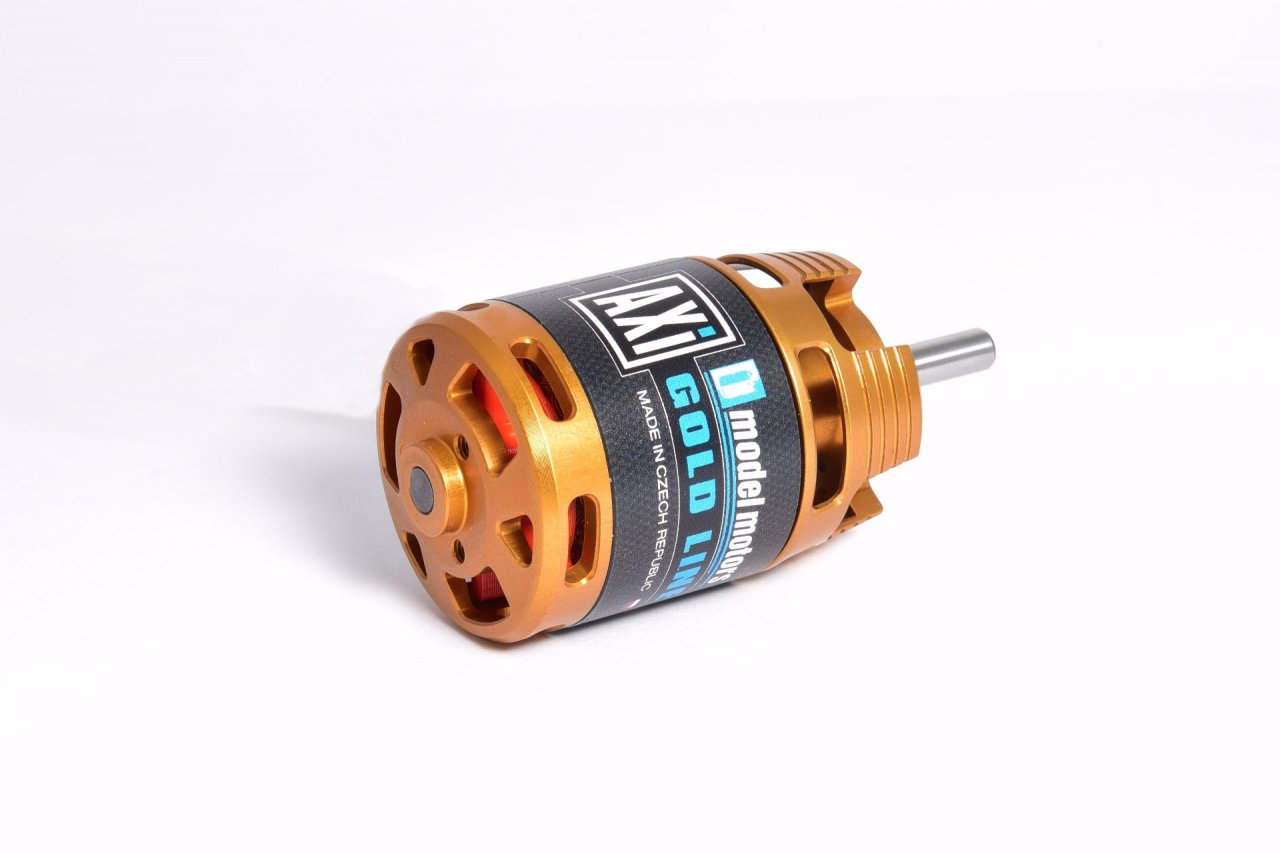

MODEL MOTORS AXI 2814/12 Gold Line V2 Long
High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 500-600 size, and up to 1900g in weight. The hardened steel 5mm diameter shaft and is supported by three ball bearings.
Delivered without prop. holder and Radial mount set!
Specifications:
| No. of cells | 2 – 3 Li-Poly |
| RPM/V | 1390 RPM/V |
| Max. efficiency | 83% |
| Max. efficiency current | 15 – 25 A (>75%) |
| No load current | 1.7 A |
| Current capacity | 37 A/60 s |
| Internal Resistance | 53 mohm |

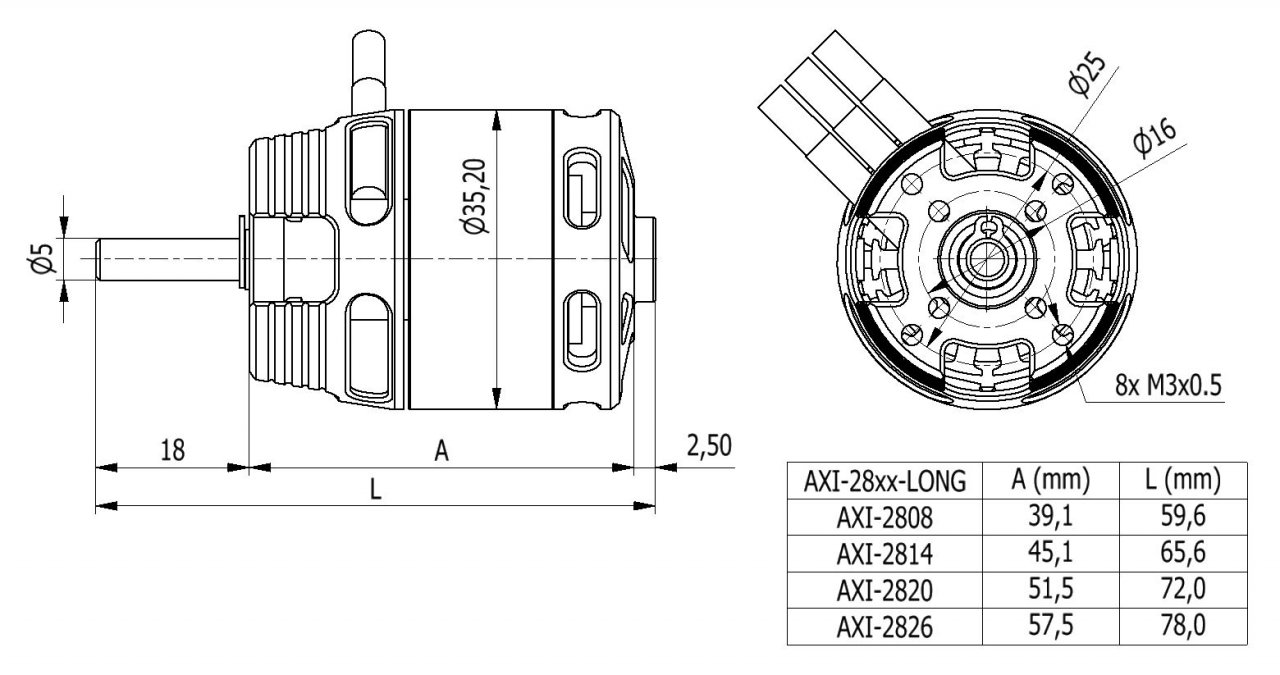

| Dimensions | 35 x 45 mm |
| Shaft diameter | 5 mm |
| Weight | 115 g |
| Max. power | 360 W |
Best Practices
Reviews
There are no reviews yet.
