Description

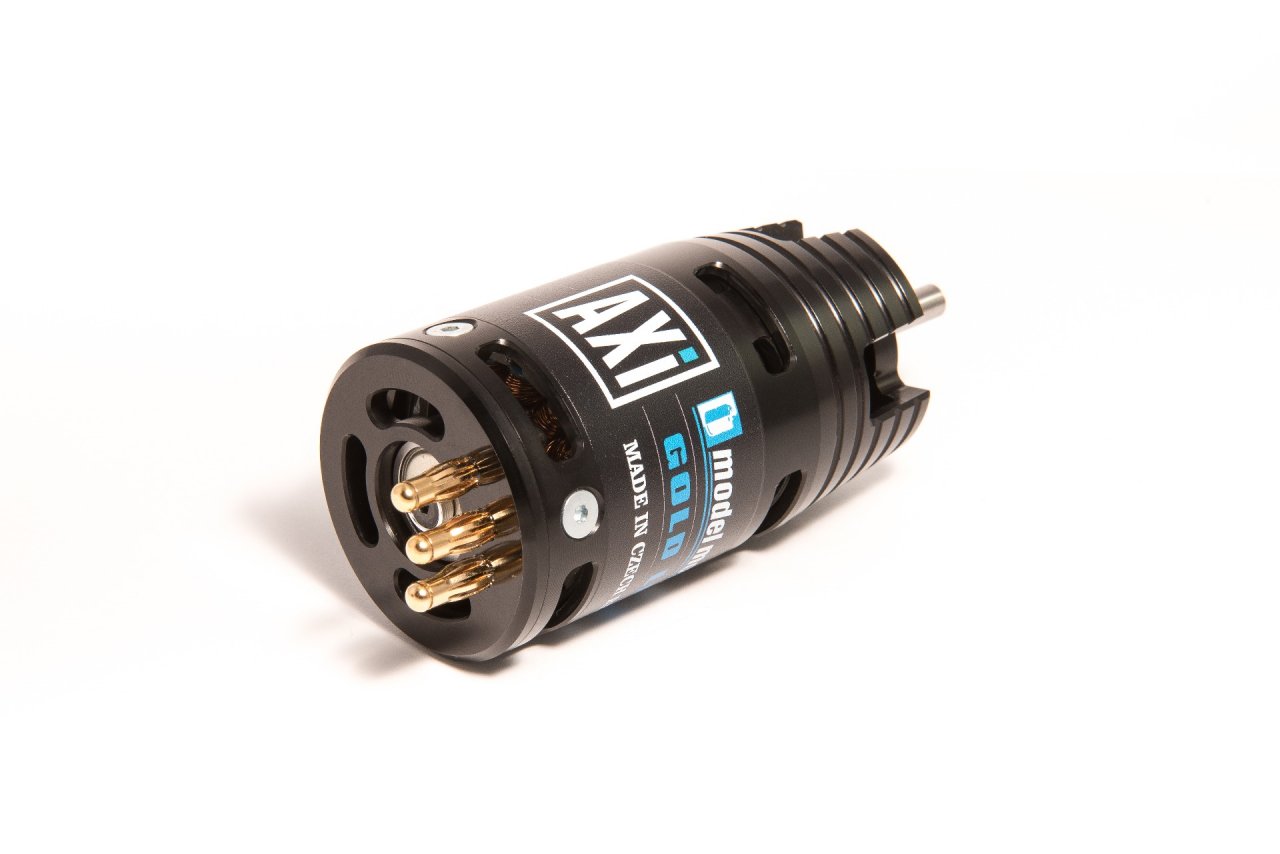

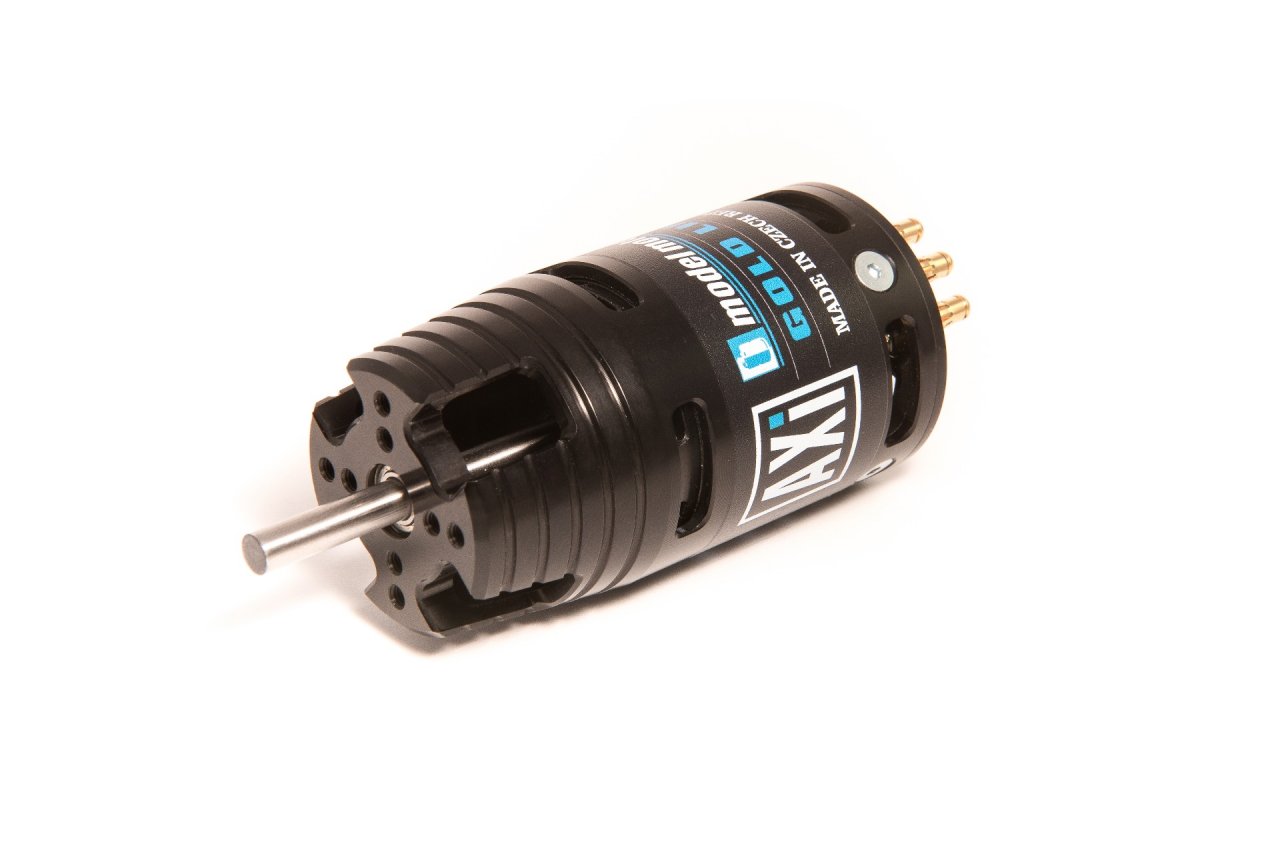

MODEL MOTORS AXI 2814/20 Cyclone KV840
High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 500-600 size, and up to 1900g in weight. The hardened steel 5mm diameter shaft and is supported by three ball bearings.
Delivered without prop. holder and Radial mount set.
Best Practices
Technical Specification
| No. of cells | 2-3 Li-Poly |
| RPM/V | 840 RPM/V |
| Max. efficiency | 85% |
| Max. efficiency current | 8-17 A |
| No load current | 0.6A |
| Current capacity | 28A/60s |
| Internal resistance | 145 mohm |
| Dimensions | 40 x 63mm |
| Shaft diameter | 5mm |
| Weight | 164g |
| Max. power | 365W |
