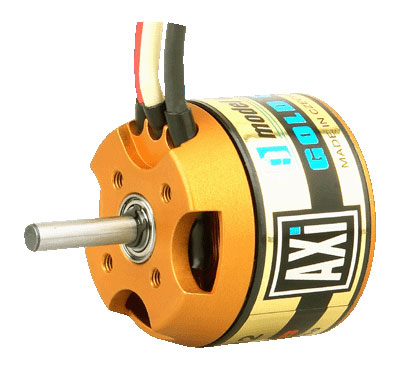

Model Motors AXI 2814/6D Brushless Motor

Model Motors AXI 2814/6D Brushless Motor is a high torque brushless motor with rotating drum and high power neodym magnets suitable for FUN JET models 600-1000g in weight reaching speed over 200km/h. Due to it’s high torque this motor is capable of turning propellers with a high level of efficiency and without the need for a gearbox. A new feature in the AXI design is a provision for radial mounting (see picture). The optional radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.

No. of cells: RPM/V: 2850 RMP/V Max. efficiency:  Max. efficiency current:  No load current / 6:  Current capacity:  Internal Resistance: Dimensions (diameter. x lenght): Shaft diameter: Weight with cables:

2 – 3 Li-Poly 2850 RMP/V  80% 20 – 45 A (>75%) V 4,5 A 55 A/60 s 22 mohm 35×37 mm 4 mm 106 g
