Description

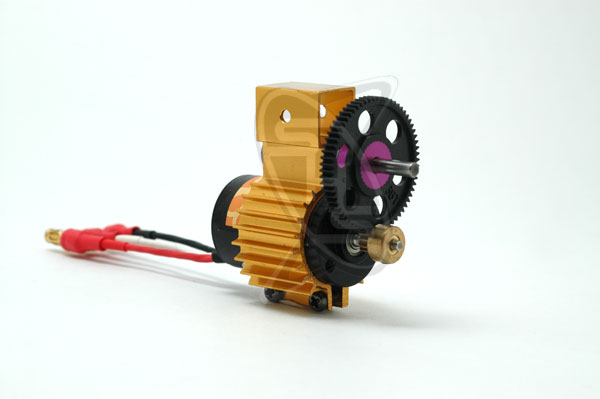

Tahmazo IR-201554 Brushless Motor with Gearbox GB-200 is a 3-phase AC synchro motor with tightly packed windings to deliver high magnetic concentration for optimum power. They are fitted with dual ball bearing and heat treated shaft for maximum efficiency.
| Propeller | Li-Po 2-cells | Li-Po 3-cells | |
| APC 9X4.7SF | RPM | 5,500 | 7,300 |
Current (A) | 5.3 | 9.5 | |
| APC 10X4.7SF | RPM | 5,100 | 6,400 |
Current (A) | 7.2 | 11 |

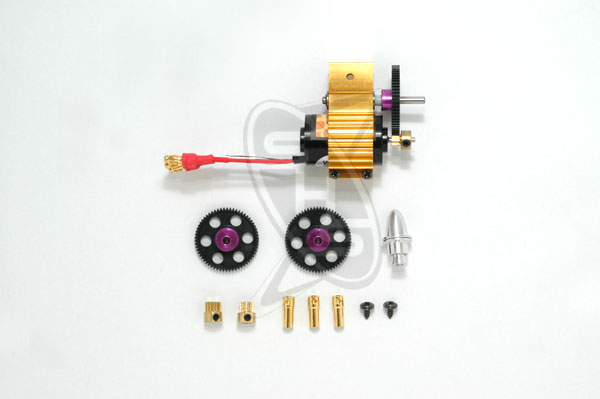

Package includes:
- Tahmazo IR-201554 Brushless Motor
- GB-200 Gearbox with 4:1, 5:1 and 6:1 gear ratio
- Propeller adapter
- Gold Connectors
Specifications:
- Battery: 6-10 cells Nicad/Nimh, 2-3 cells Lithium Polymer
- Current: 8-12A (> 75% efficiency)
- Dimension: 20 x 31 mm
- Shaft diameter: 2 mm
- Weight (with wire): 47g
- Weight for flying model: 200-500g
