ACUVANCE TAO III – Smart Access Drive Effector

Description

This is Program Controller exclusive for XARVIS, XARVIS XX and RAD.

Updated to the latest firmware Ver 2.0. (Oct 27th, 2022)

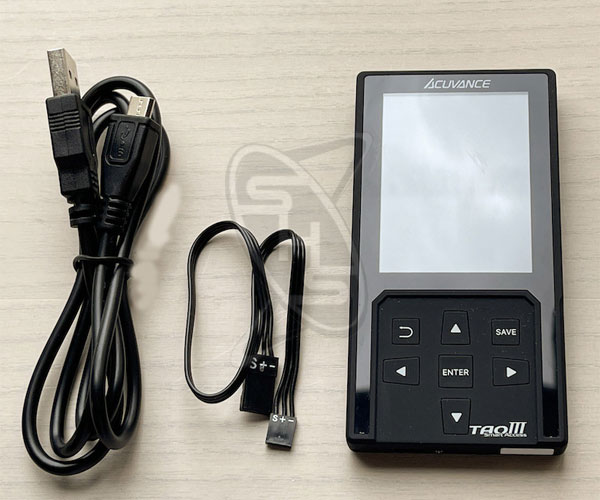

Update Device Kit (60570) is not required to update TAO III. Simply connect the included USB cable to your Windows PC.



– Easy setting : Equipped with a [Direct Setting Mode] that allows you to bring out the performance of

the ESC / motor simply by entering the driving conditions [NEW FUNCTION].

Even beginners can easily enjoy the performance of the XARVIS series and motors. Of course, as with TAOⅡ,

you can make fine adjustments to a wide variety of detailed settings.

[Drive Surrounding]

1.  Course type : High-Speed / Short
2. Type of road surface : P-tile ･ Colored Concrete / Asphalt / Carpet
3. Road grip strength : Low / High
4. Number of motor turns : 10.5T / 13.5T

– AI ACCESS : A new feature of TAO III is that by inputting a numerical value between +3 and -3 for acceleration,

deceleration, and traction according to your preference, the each parameter will automatically change.

The AI Access function installed in latest firmware (Ver 2.0) of TAO III is only compatible with XARVIS XX and RAD(Futaba MC971CR). It is not available in XARVIS (Futaba MC970CR).

– Custom Menu : Until now, all 27 items of the setting function were displayed, and it took a lot of time to select

and change the data, but now it is possible to display only the necessary change items [NEW FUNCTION].

This allows direct access to the required items.

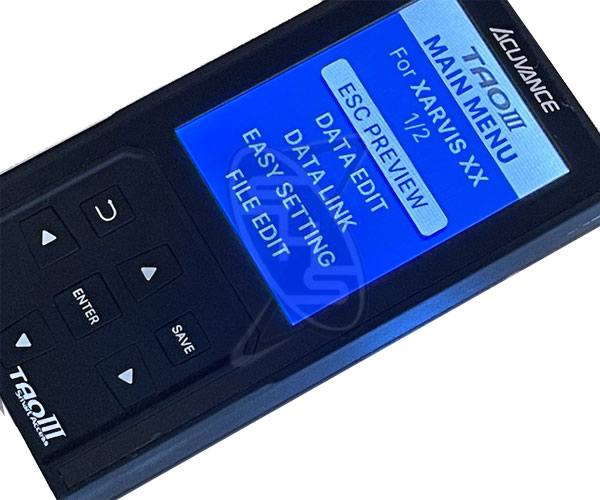

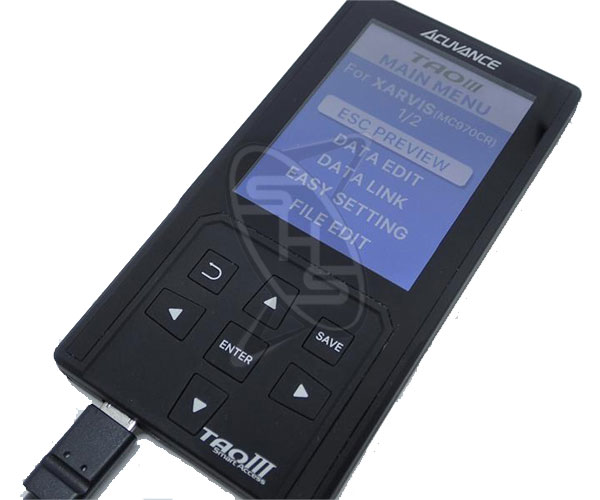

– Uses a 2.8-inch LCD. In addition, by enlarging the characters, a screen that is easier to see is realized

(TAOⅡ ratio: 2 times the number of dots, screen ratio: 1.3 times).

– We reviewed the layout of the menu and made it possible to change the settings more intuitively.

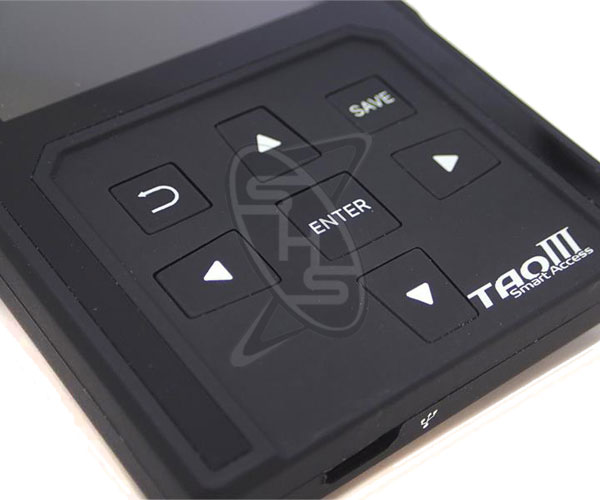

-　The operability of the buttons has been improved (compared to TAO II), the editing of data settings has been

simplified, and the display has been changed to reduce scrolling as much as possible.

-　This product is for wired connection only and cannot be used for wireless connection.
