Description

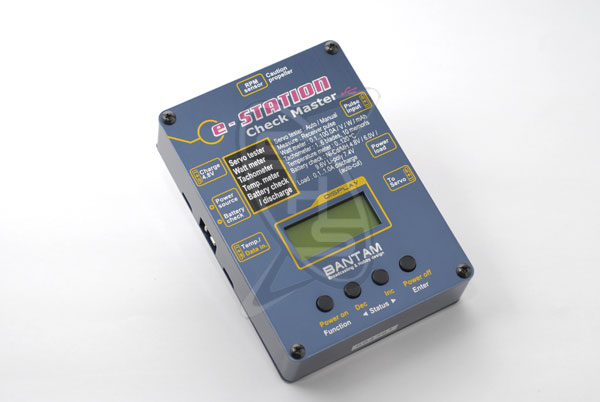

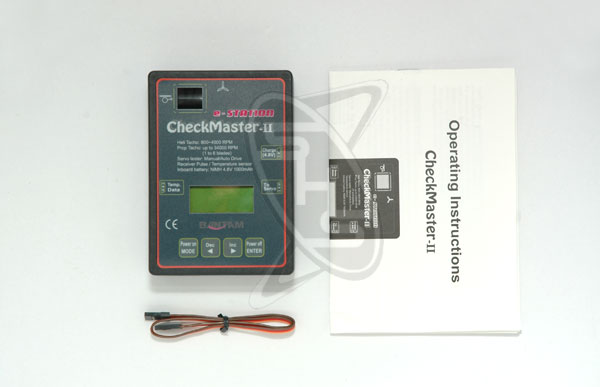

With the Bantam e-Station Checkmaster, you can test any brands of servos for the pulse sent to the receiver, current-load and movement. The power load can also checked with the value of voltage, amp, and watt up to 100A. The Checkmaster also has a very accurate optical tachometer that measures the RPM of a running propeller and battery checker for various types of RX battery.
Specification:
- Servo operation tester: Auto/manual servo movement, sinal pulse 900us~1500ux~2100us, servoload current (amps)
- Measure pulse: RX pulse (us) from TX
- Watt meter: 0.1 to 100A, voltage/Watt/mAh, automatic calibration of voltage and Amps
- Propeller trachometer: 1 to 6 blades, up to 3400RPM, up tp 10 data memories
- Rotor blades tachometer: optical rotating drum, 800 to 2400 RPM, up tp 10 memories
- Temperature sensor: 0 to 120 degree (C)
- Battery checker: NiCd/NiMH 4.8V, 6.0V, 9.6V, Lithium 7.4V (max. 60V)
- Inboard battery: 4.8V, 1000mAh iCd
- Dimensions (mm): (W)80 x (H)113 x (D)28
