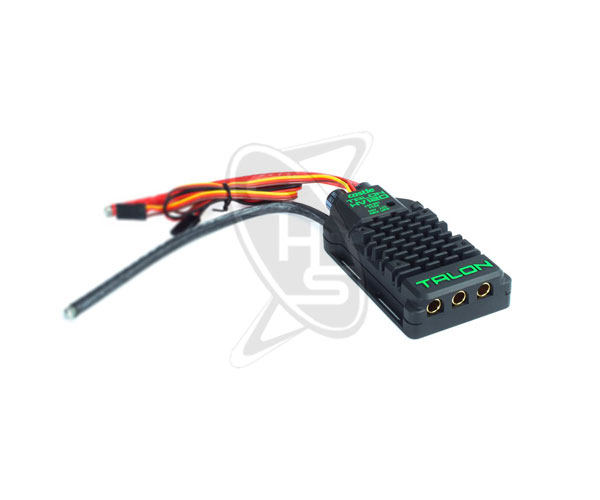

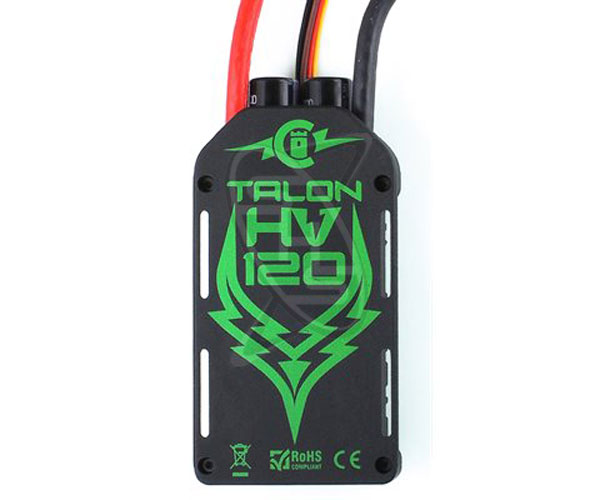

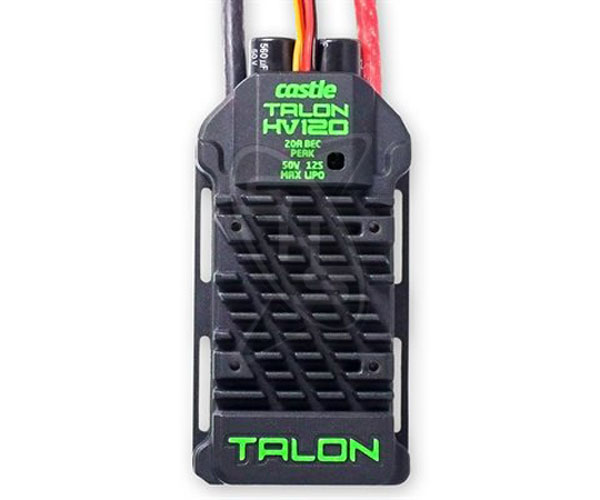

CASTLE CREATIONS Talon HV120 ESC (20A BEC)

Description

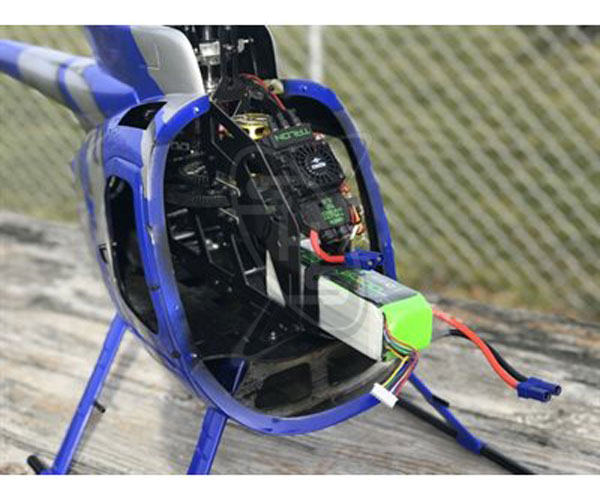

Talon HV 120 is the first high voltage controller to come out of the Castle factory with a built-in BEC. This powerhouse features a 20A peak BEC with selectable 6v or 8v output voltage. With a voltage input range from 3S to 12S LiPo, and a 120A continuous amperage capability, it’s capable of up to 6000W of continuous power for a wide variety of heli and fixed wing applications. The sleek aluminum case keeps the ESC cool during high power demand situations. For set-ups with limited airflow, such as under canopies or in a fuselage, there is an optional 40mm fan (sold separately; operates at 4.8 – 7.4 volts). Talon HV 120 has access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB Adapter.

* Remove BEC Power wire from receiver before connecting to Castle Link.

Telemetry Capable : Yes
ESC Current Rating : 120
Data Logging : No
Auxiliary Wire : No
Internal BEC : Yes
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S
