Description

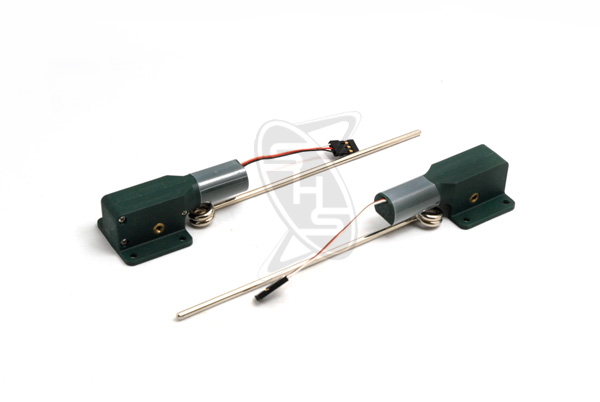

Tahmazo Elf Retracts are lightweight designed, reliable and suitable for models up to 2.0Kg. It offers a reliable built-in self locking actuators that do not require additional servos and linkages. Its thin profile design allows ease of installation.
Product Features:
• Built-in actuators on each retract eliminates the need for complex linkages.
• Safe start feature prevents any damage due to incorrect switch position on the transmitter when turned on. Retracts will not operate if transmitter switch is not correct.
• When the retracts are accidentally jammed during operation, the power will be automatically cut off by the internal circuit preventing continuous power drain battery and damage to the actuator.

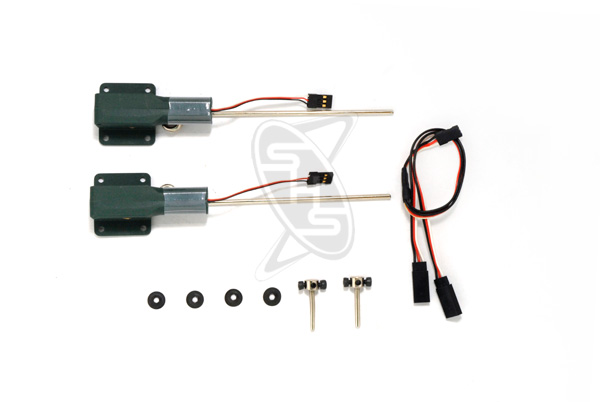

• Easy length adjustment with the use of the included wheel axle. Accessories included: 1) Y-cable 2)Wheel Axle
Specifications:
| Type: | Built-in retractable electric drive unit |
| Operating Voltage: | 4.8V ~ 8V (voltage no greater than a 4-cell Ni-Cd is recommended in preventing any damage the receiver) |
| Control signal: | Positive Pulse rate of 1200μs ~ 1800μs |
| Wheel weight: | Up to 60g/4.8V per retract |
| Overload Protection: | cut off when overload operates more than 2 seconds |
| Operating temperature: | 0°C to 50°C (at 10°C or less, the unit will experience slow operation) |
| Weight: | 42g (each) |
